Dell Inspiron 13-5368 Touchpad Replacement

Geschrieben von: Matt Sugrim
  • Kommentare: 2
Dell Inspiron 13-5368 Touchpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

This is a simple step-by-step guide on how to remove and replace a touchpad for a Dell Inspiron 13-5368. You will need a Philips Head J-0 screwdriver and a pry tool in order to perform this task. It is very easy to do and will take about 7 minutes.

  1. YGxGEaifNhHbAYMT
    YGxGEaifNhHbAYMT
    STXteWiGpNgEvcmd

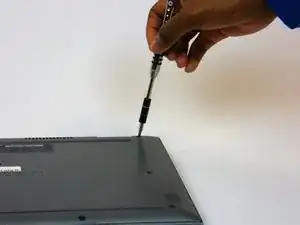

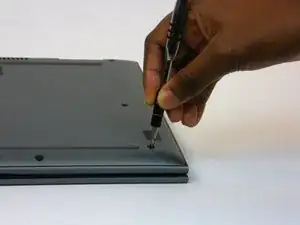

    • Remove the nine 6mm Phillips #0 screws that secure the back cover of the laptop.

    Note that Dell Inspiron 13s have had a rash of bad batteries that swell as they age, causing them to press hard against the trackpad. This can cause it to track poorly or make it difficult or impossible to left or right click the pad. Replacing the bad battery often fixes these kind of trackpad issues on these models where the battery is directly under the trackpad.

    Heath Connett -

  2. ZqC5OmtrKBlcDxYh
    ZqC5OmtrKBlcDxYh
    EgR4OadWgOWMPxYe

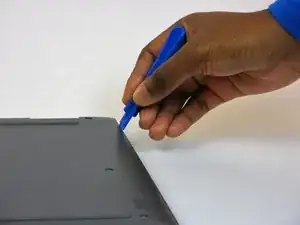

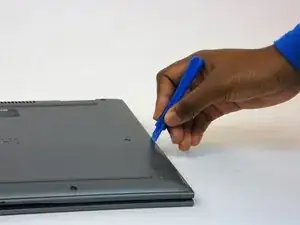

    • Use a spudger to pry up and remove the back cover.

  3. IVBwTyULE5PRybLx

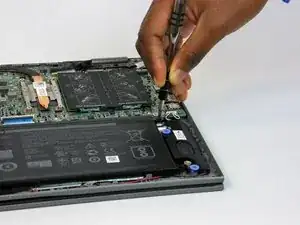

    • Remove the four 3mm Phillips #0 screws at the corners of the battery that secure it to the laptop.

  4. iFLtoIVVywSClyXV

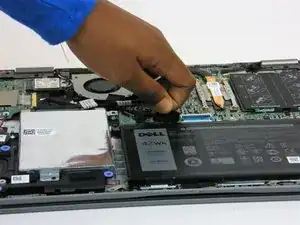

    • Pull the battery cable's black tab towards the battery to disconnect it from the motherboard.

    • Pull the tab parallel to the motherboard, not straight up.

    In what direction should I pull the tab. And how should I hold it

    Bam -

  5. iNoZKiCrLyqo1lFC
    iNoZKiCrLyqo1lFC
    rohJufRohoinoMcl

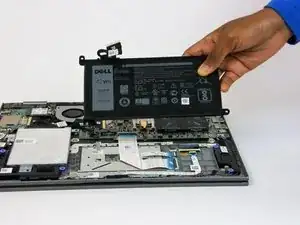

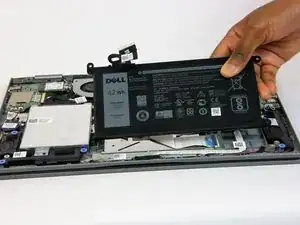

    • Remove the battery.

  6. rJxOHIkQcFHwSdE1
    rJxOHIkQcFHwSdE1
    vjImBbyvFQeqHEbQ

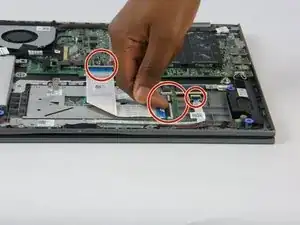

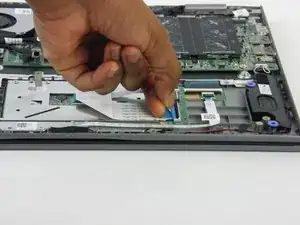

    • Undo the clasps that hold the ribbon cables in place. Then, remove the ribbon cables.

  7. VyiuAaWTEDYUpJX6

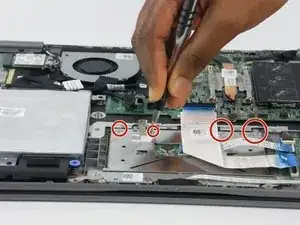

    • Remove the 1.5mm Phillips #0 screws that hold the touchpad to the laptop case.

  8. lMSvCqgO1GIPQls2
    lMSvCqgO1GIPQls2
    Cy5b52KNMAED4UGM

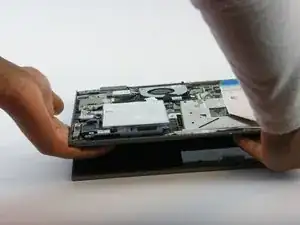

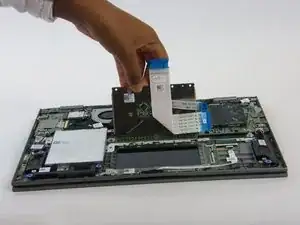

    • Push up on the touchpad to release it from the housing. Then you can remove the touchpad.

Abschluss

To reassemble your device, follow these instructions in reverse order.
