Dell Inspiron 13-5378 Battery Replacement

Geschrieben von: Terrence15
  • Kommentare: 1
Dell Inspiron 13-5378 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 - 35 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery.

  1. Gso6niWI4p55KVHM

  2. FJT26aOyoc5UUXtJ

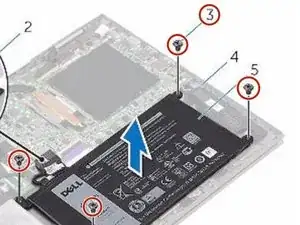

    • Remove the screws that secure the battery to the palm-rest assembly.

  3. RCTGmR1iNNR52xlk

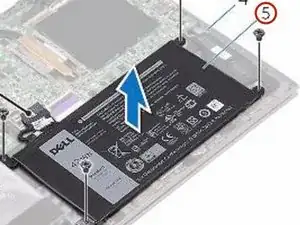

    • Lift the battery off the palm-rest assembly.

    • Press and hold the power button for five seconds to ground the system board.

  5. QXFJTON3Y13PGOCg

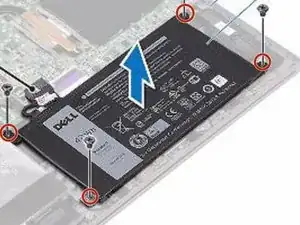

    • Align the screw holes on the battery with the screw holes on the palm-rest assembly.

  6. xu2GSwxm6VOlnu44

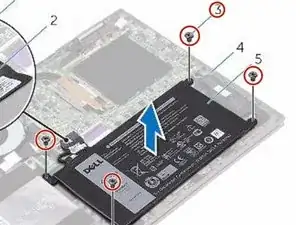

    • Replace the screws that secure the battery to the palm-rest assembly.

  7. 4MgfbIEFnvTGVnJt

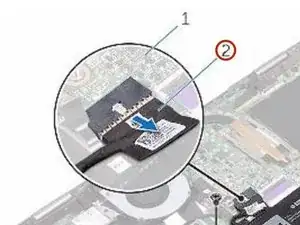

    • Connect the battery cable to the system board.

    Hi do you need to push the white plastic, before you pull out the connector ?

    Thanks

    eddie paijo -
