Dell Inspiron 13-5378 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 13-5378 Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

10 - 30 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Display Assembly.

  1. nRyh2SKPPC6ksADb

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Peel off the pieces of tape that secure the display cable and touch-screen board-cable to the system board.

  2. LCwB6AYGyyMQS5Lx

    • Open the latches to disconnect the display cable and the touch-screen board-cable from the system board.

  3. wjVGq2cZl2cAvQEi

    • Turn the computer over and open the display as far as possible.

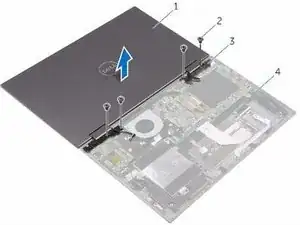

  4. qDhgovsEfFH6lUjK

    • CAUTION: Place the computer on a soft and clean surface to avoid scratching the display.

    • Place the computer face down on a flat surface.

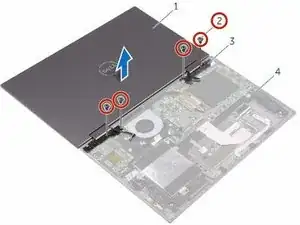

  5. LClxkMXGmVPfVriD

    • Remove the screws that secure the display assembly to the palm-rest assembly.

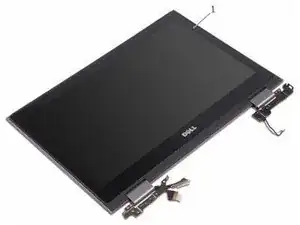

  6. O1fRJL2rmCIK3FFU

    • Lift the display assembly off the palm-rest assembly.

  7. VmbCvdSo5DgypPiY

    • Place the NEW display assembly face down on the palm-rest assembly.

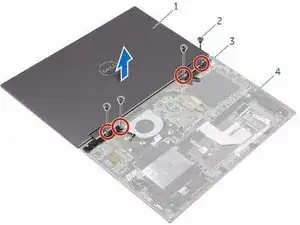

  8. tNllSNiANo45fm2p

    • Align the screw holes on the display hinges with the screw holes on the palm-rest assembly.

    • Close the display and turn the computer over.

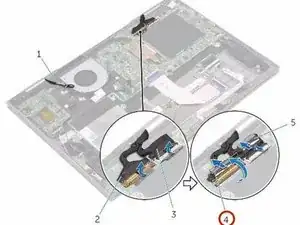

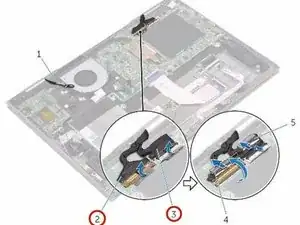

  10. AAm4JPIYnJUiHsNo
    AAm4JPIYnJUiHsNo
    JKrrcyi2scCQQeFG

    • Slide the display cable and the touch-screen board-cable into their respective connectors on the system board and close the latches to secure the cables.

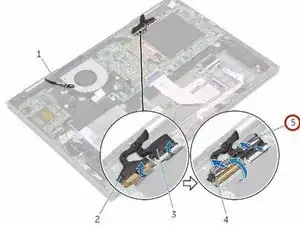

  11. 3faFG5xtCkodRWmq

    • Adhere the pieces of tape that secure the display cable and the touch-screen board-cable to their respective connectors on the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
