Dell Inspiron 13-5378 Memory Modules Replacement

Geschrieben von: Terrence15

Kommentare: 1

Dell Inspiron 13-5378 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 - 35 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Memory Modules.

Werkzeuge

Essential Electronics Toolkit

Schritt 1

JyhYCtMQr6ED6eIJ

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

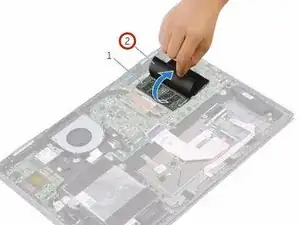

Lift the Mylar to access the memory module.

Schritt 2

Nsf2oR2Kg26ZsnqH

Nsf2oR2Kg26ZsnqH

RBBH4WxCWVJPNwgZ

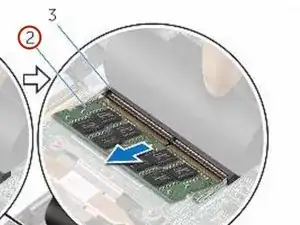

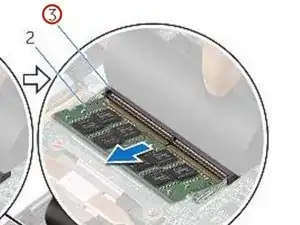

Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module pops up.

Schritt 3

ettDSNBoHftFlSvE

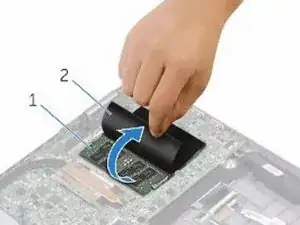

Lift the Mylar to access the memory-module slot.

Schritt 4

an6NYEFr6wJT1AMF

Align the notch on the NEW memory module with the tab on the memory-module slot.
