Dell Inspiron 13-7352 Cooling Fan Replacement

Geschrieben von: Chris Monte
  • Kommentare: 1
Dell Inspiron 13-7352 Cooling Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

7 Minuten

Einleitung

The cooling fan keeps the devices internal components from overheating during operation. It is located in the rear center of the base next to the exhaust vent.

  1. piRTWCgdqhihn5TY
    piRTWCgdqhihn5TY
    htxm5YMKTomAHdsK
    QtydMqTXMbJyWnIf

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

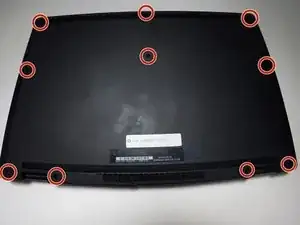

    • Use a Phillips screwdriver to remove the ten 7.5mm screws that securing the back panel.

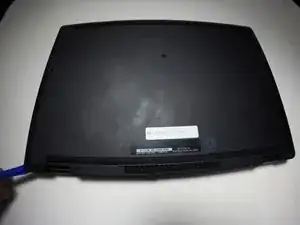

    • Use the plastic opening tool to pry up and loosen the back panel.

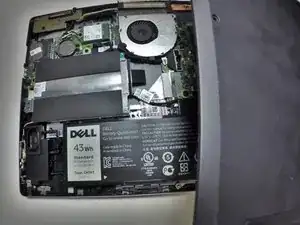

    • Remove the back panel.

  2. HHTQoNnULxQvjnfd
    HHTQoNnULxQvjnfd
    hUqEjqJLYTPwQJRP

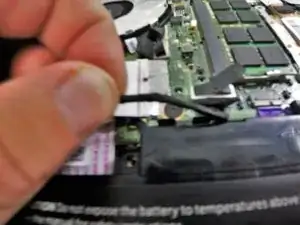

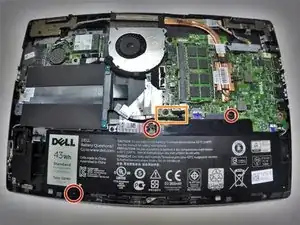

    • Use a Phillips screwdriver to remove the two 3 mm screws securing the battery.

    • Unclip the hard drive wire from the battery.

  3. 2QHoqSpJLKaEaBcH

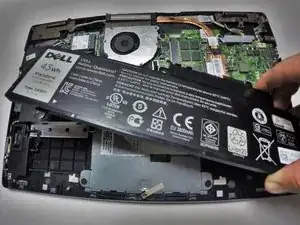

    • Gently remove the battery from the rest of the device.

    In the official service manual, they also recommend the following after removing battery.:

    "Press and hold the power button for 5 seconds, to ground the system board."

    Jordan Lui -

  4. cQSypycVRCTpSyLQ
    cQSypycVRCTpSyLQ
    yKMTIoFD2FaEUaxB

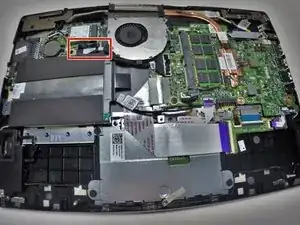

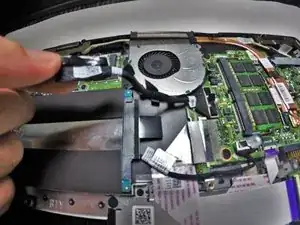

    • Remove the cord that runs from system board to the I/O board.

  5. AKwOaFBHU6wwwIAX
    AKwOaFBHU6wwwIAX
    qt3D6nUqZWLBO2LY

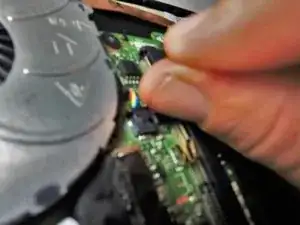

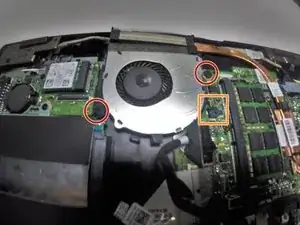

    • Remove the 3mm and 4mm screws holding down fan with the Phillips #0 head.

    • Disconnect the fan wire from the system board.

  6. yDpBvKCYIVa4T4fH

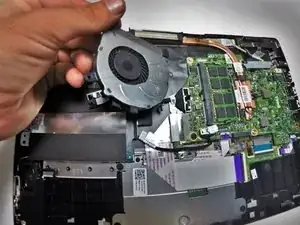

    • Lift the fan from the rest of the device by picking up a single side and separating it from device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
