Dell Inspiron 13-7352 DC POWER JACK HARNESS Replacement

Geschrieben von: Anthony Burke
  • Kommentare: 1
Dell Inspiron 13-7352 DC POWER JACK HARNESS Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 Minuten

Einleitung

  1. NKudY6hxYsRPWDAS
    NKudY6hxYsRPWDAS
    W3fcM5DiO6jRLrbV
    K2E3IjqqKnlRTQQn

    • Before disassembling your laptop, be sure it is powered off.

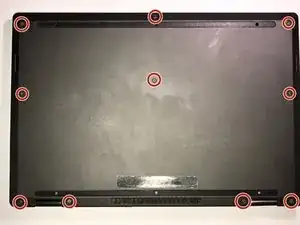

    • Remove the ten 7.5mm screws that secure the back panel with the Phillips #0 head

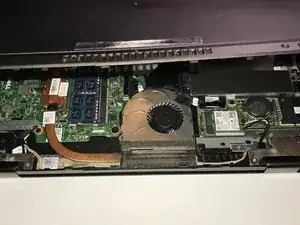

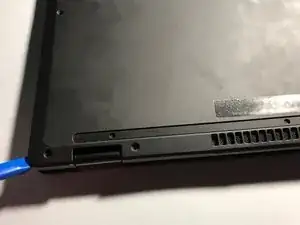

    • Use the plastic opening tool to remove the back panel. Start at the back corner and work across. The front edge of the laptop panel hinges and pivots upward after the back edge and the side edges are separated from the casing.

  2. 16WUJwYWDQ1KIgwa
    16WUJwYWDQ1KIgwa
    SRnFZWbhTA3YCBxc
    AXHrriIAU6fQXKqx

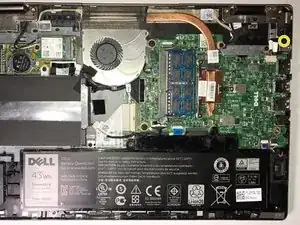

    • Remove the one 4mm screw with the Phillips #0 head that hold down the battery.

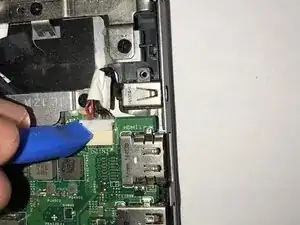

    • Use the plastic opening tool to remove DC Power Jack harness connector from the motherboard.

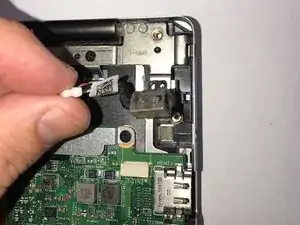

    • Gently remove the DC power jack harness from the device and replace it with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Anthony Burke

Mitglied seit: 08/03/15

109 Reputation

Ein Kommentar

This is perfect, but I’m curious how others may have handled an issue where the screw hole for my 7359’s power jack disintegrated. Anyone have any idea on how to anchor a power jack without that screw hole? I tried Sugru to mold around it, but that didn’t work. Any other ideas would be welcome.

Harry Morgan -
