Dell Inspiron 13-7352 Hard Drive Replacement

Geschrieben von: Chase Sparkman

Kommentare: 2

Dell Inspiron 13-7352 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

7 Minuten

Einleitung

The Hard Drive is your main storage place on your laptop. This is responsible for holding everything on your laptop from simple documents to your installed operating system. Also adding a bigger hard drive might speed up your laptop if your current one is full or corrupt

Werkzeuge

Ersatzteile

Dell Inspiron 13-7352 Hard Drive

Schritt 1

Before you begin, be sure to turn off your laptop and unplug it from the outlet.
Use a Phillips screwdriver to remove the ten 7.5mm screws that securing the back panel.
Use the plastic opening tool to pry up and loosen the back panel.
Remove the back panel.

Schritt 2

Use a Phillips screwdriver to remove the two 3 mm screws securing the battery.
Unclip the hard drive wire from the battery.

Schritt 3

Gently remove the battery from the rest of the device.

In the official service manual, they also recommend the following after removing battery.:

"Press and hold the power button for 5 seconds, to ground the system board."

Jordan Lui - 21/03/17

Schritt 4

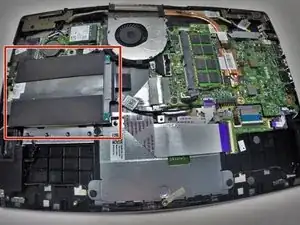

Locate the Hard Drive.

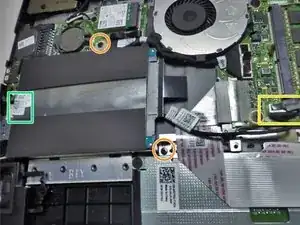

Remove the two 3mm screws from Hard Drive with the Phillips #0 head.

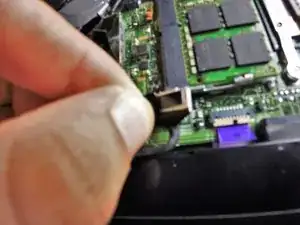

Disconnect the wire attached to the system board by lifting up the tape.

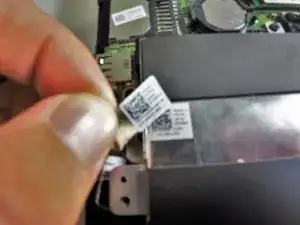

Remove the tape tab from the Hard Drive by lifting the tape up and off of the Hard Drive unit.

Schritt 5

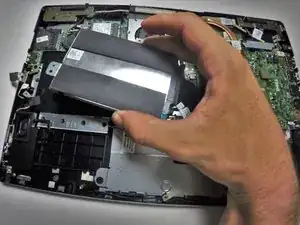

Once disconnected from the tape and the connector is free, lift the Hard Drive unit from the rest of the device by grasping each side with thumb and index or middle finger.

This covers removal, but not replacement. Maybe change the title? Since you also need to pull the caddy and insert the new drive, not to mention clone the drive, this guide isn’t quite complete. When pulling the cover, are there tabs that may break?

Jeff Handy - 08/05/21
