Dell Inspiron 13-7352 Memory Module (RAM) Replacement

Geschrieben von: Chase Sparkman
  • Kommentare: 5
Dell Inspiron 13-7352 Memory Module (RAM) Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

The Memory Module (RAM) is one of the two memory storage places in your laptop. Some of your laptop's speed is dependent on the Memory Module so an upgrade may boost your laptop's overall performance if your current one if full.

  1. piRTWCgdqhihn5TY
    piRTWCgdqhihn5TY
    htxm5YMKTomAHdsK
    QtydMqTXMbJyWnIf

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

    • Use a Phillips screwdriver to remove the ten 7.5mm screws that securing the back panel.

    • Use the plastic opening tool to pry up and loosen the back panel.

    • Remove the back panel.

  2. HHTQoNnULxQvjnfd
    HHTQoNnULxQvjnfd
    hUqEjqJLYTPwQJRP

    • Use a Phillips screwdriver to remove the two 3 mm screws securing the battery.

    • Unclip the hard drive wire from the battery.

  3. 2QHoqSpJLKaEaBcH

    • Gently remove the battery from the rest of the device.

    In the official service manual, they also recommend the following after removing battery.:

    "Press and hold the power button for 5 seconds, to ground the system board."

    Jordan Lui -

  4. YAUGrrTAHatbXoQQ
    YAUGrrTAHatbXoQQ
    JhZyypaJBCEWnRrj
    DoFx2bx1eXsksgsB

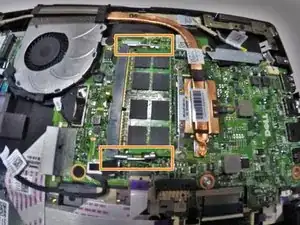

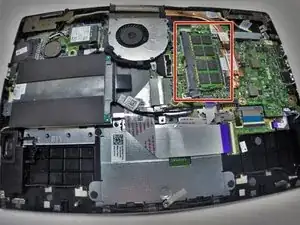

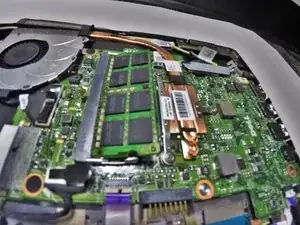

    • Locate your memory module (RAM).

    • Release the clips from the Memory Module by gently pushing down. This should cause the Memory Module to pop up and separate from the device base.

  5. OxLmbiotZEDHvMEu

    • Pull the Memory Module from its slot by grasping each side with thumb and middle or index finger to pull from the rest of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Chase Sparkman

Mitglied seit: 30/09/15

506 Reputation

4 Kommentare

Hello is the procedure same for 7353 ? can the ram be upgraded to 16GB. it currently has 8GB

Ali M -

Hi! Same questions as Ali M: Is the procedure same for 7353 ? can the ram be upgraded to 16GB: It currently has 8GB and I'd like to upgrade it to 16 GB.

Roberto de Souza Santos -

Did anyone ever get an answer if it can take 16 GB of RAM?

Robert Iversen -

A 16GB RAM would work but it should be a single sodimm module like CT204864BF160B

Hochan Son -
