Einleitung

If Dell Inspiron 13-7353 is experiencing hard drive crashes, memory wipes, or is unable to save files to laptop then use this guide to replace the hard drive with a new one or fix it.

Upon installation of a new hard drive or a repaired hard drive, ensure to test the new hard drive by saving files to the desktop, documents, and the computer tabs.

Turn off the computer and disconnect any external power before operating on the components of the device.

  1. mGXLQcLHdUFwo3qo

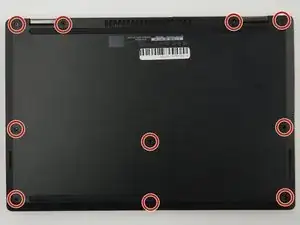

    • Using the Phillips #0 screwdriver, remove ten 4 mm screws from the back panel.

    • Lift and remove the back panel.

  2. nkeBF4wpJNuW1LhD

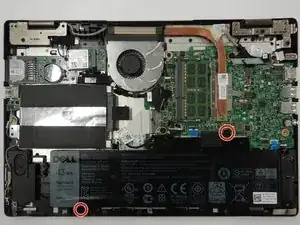

    • Use a Phillips screwdriver to remove the two 3 mm screws securing the battery to the laptop.

  3. lNLSRJZoyqNV3cvG

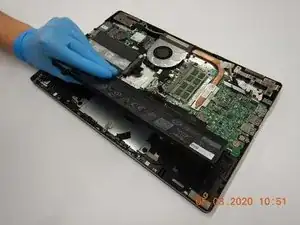

    • Remove the battery up and out of the computer.

  4. XFDqyhDU3RYge1Eb

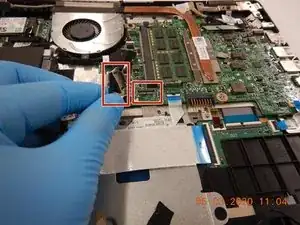

    • Unplug the hard drive cable from the motherboard.

  5. e4KoixQpYjFkhHYN

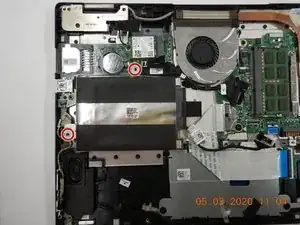

    • Using the Phillips #000 screwdriver, remove two 3mm screws from the hard drive frame.

  6. 5RhWHcN6Xvd5wDED

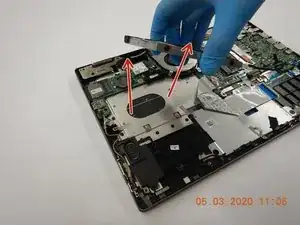

    • Lift the hard drive up and out of the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
