If your Dell Inspiron Laptop (Model 13-7353) is overheating and your computer's fan is functioning properly, replacing the heat sink may help.

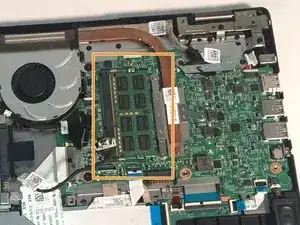

The heat sink is a component, typically made of metal, that increases heat flow away from a hot device. In a laptop computer, space is limited, so the heat sink often sits on top of a component that generates a lot of heat, such as the processor. The heat sink works by absorbing excess heat and dissipating it throughout the device. The heat sink is often next to the fan.
Before following this guide, back up your computer's data on the cloud or an external hard drive.
Before starting your repair, make sure to power down your device and disconnect it from any external power source.
-
-
Close the computer display and turn the computer over so that the base of the computer is facing up.
-
-
-

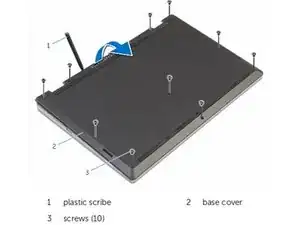

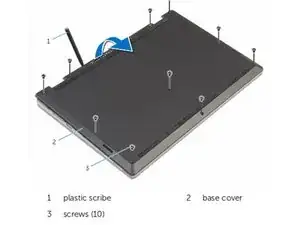

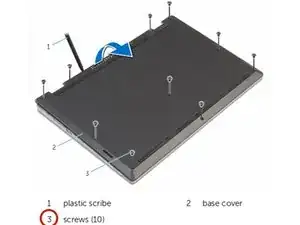

Using a plastic scribe (plastic opening tool), pry the base cover off of the base of the computer.
-
-
-

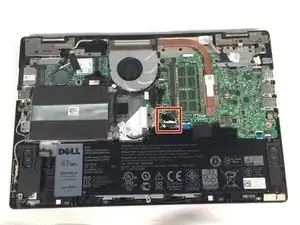

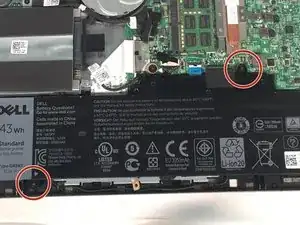

Remove the two M2 3mm screws attaching the battery using the Phillips #1 screwdriver.
-

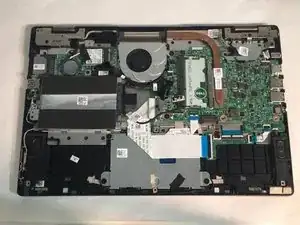

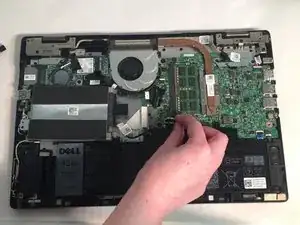

Remove the battery.
-
-
-

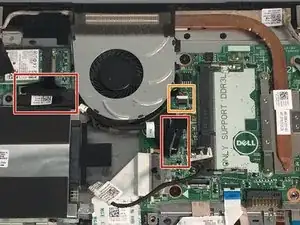

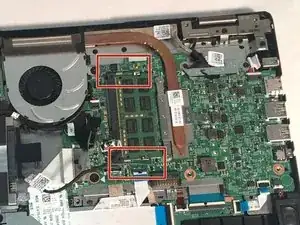

Unplug the daughterboard cable in two places, then remove the daughterboard.
-

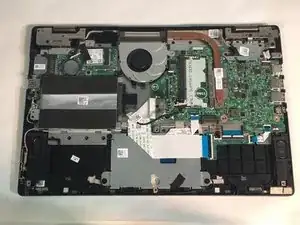

Unplug the fan cable.
-
-
-

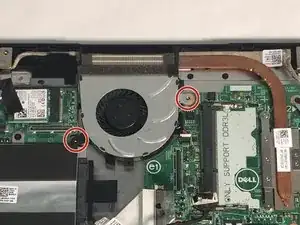

Remove two 3mm screws from the cooling fan using the Phillips #1 screwdriver.
-

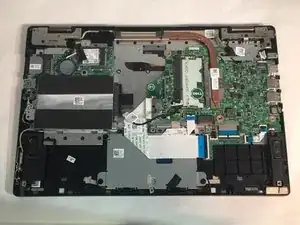

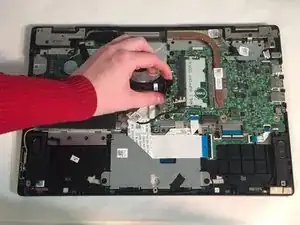

Remove the cooling fan from the laptop.
-
-
-

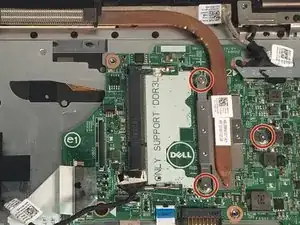

Remove three 2mm screws from the heat sink using a Phillips #0 screwdriver.
-

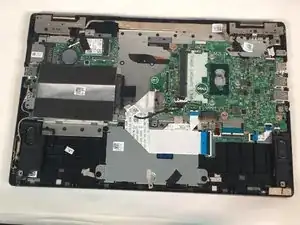

Remove the heat sink.
-
To reassemble your device, follow these instructions in reverse order.
