Einleitung
This guide provides step by step instructions to remove your Dell Inspiron 13- 7359 cooling fan. You will need a phillips head #0 screwdriver and a small plastic spudger.
-
-
Flip your device over so the back cover is facing you.
-
Using a Phillips #0 Screwdriver, remove the ten 7mm screws holding the back cover in place.
-
-
-

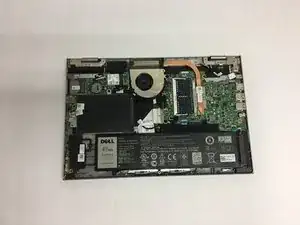

Insert a plastic opening and run it along the edge of the back cover. Do this until the entire back cover can be removed.
-
-
-

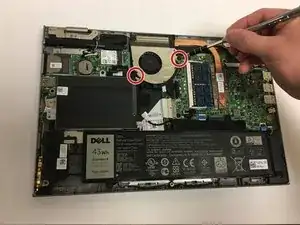

Unscrew and remove the 2 of the 7mm Phillips head screws holding the cooling fan in place.
-
-
-
Hold the cooling fan with one hand.
-

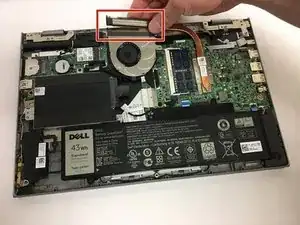

With the other hand, grab hold of the part of the copper heat sink that is attached to the cooling fan.
-

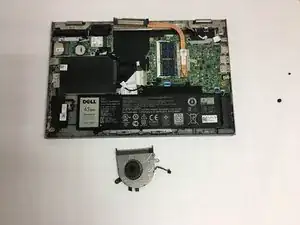

Carefully pull the cooling fan away from the attached part so that it becomes fully disconnected.
-
To reassemble your device, follow these instructions in reverse order.
