Dell Inspiron 13-7359 Screen Replacement

Geschrieben von: Austin Navarro
  • Kommentare: 2
Dell Inspiron 13-7359 Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

16

Zeitaufwand

35 - 40 Minuten

Einleitung

This guide to remove your Dell Inspiron 13-7359 screen. You will need a phillips #0 screwdriver and a small plastic spudger. This guide will require more time and is more difficult than the other replacement guides.

  1. yxttamIu3iwaTIv6

    • First flip over the laptop to expose the back panel

    • Use a Phillips #0 screwdriver to unscrew all ten 7mm Phillips head screws holding the back panel in place.

  2. COPlnvTVFy1C2Afr

    • With a plastic spudger, carefully remove the back panel by prying each corner off individually

    • Slowly pick up the panel and set it aside

  3. OUvMl2IHVMMFxDhG
    OUvMl2IHVMMFxDhG
    baRTlZYISq6Fm3QA
    3R5ExsAvQ22V31vE

    • The battery will be the largest black component in the device located near the bottom edge. Using a Phillips #0 screwdriver, unscrew the two 3mm Phillips head screws holding in the battery.

  4. 36nDoJOvpTpQYPr4
    36nDoJOvpTpQYPr4
    YGyieRtqiudAO3gw
    4Ru4KVVEsPEwvNP3

    • To remove the old battery, slightly lift the bottom edge of the battery with your hands

    • Now slowly pull the battery towards you to fully detach the battery

  5. 6FW5HCNWvElRqO6P

    • Unscrew and remove the 2 of the 3mm Phillips head screws holding the hard drive in place.

  6. CQiMbpitlxgVYSEJ
    CQiMbpitlxgVYSEJ
    QBcF32LupUyhPCet

    • Lift and hold the hard drive in your left hand.

    • Use your right hand to grab hold of the black wire connector attached on the right of the hard drive.

    • Carefully pull the connector away from the hard drive to completely disconnect from the laptop.

  7. vmSbjprLVt1fcRCJ
    vmSbjprLVt1fcRCJ
    UgDHvZPClkdgseHD

    • Unscrew and remove the 2 of the 7mm Phillips head screws holding the cooling fan in place.

  8. huPvMlWTTm4vvjGP

    • Hold the cooling fan with one hand.

    • With the other hand, grab hold of the part of the copper heat sink that is attached to the cooling fan.

    • Carefully pull the cooling fan away from the attached part so that it becomes fully disconnected.

  9. EAupnnXNIXJ3LhjA

    • Make sure that the Battery, Hard Drive, and Cooling Fan are safely removed.

  10. jT53AvJSwNaHl3sa
    jT53AvJSwNaHl3sa
    fCKEsaM6IgSrN3HY

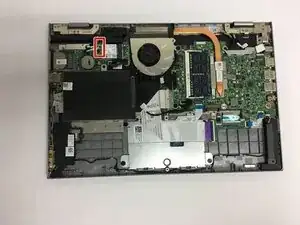

    • Unplug antenna cables located at the top left corner.

    • Unplug daughter board located to the bottom left of the cooling fan.

  11. DlhbS6IZgH3K4OLY
    DlhbS6IZgH3K4OLY
    W3NPTDSuYXQEcXKe

    • Find the heat sink (copper colored metal).

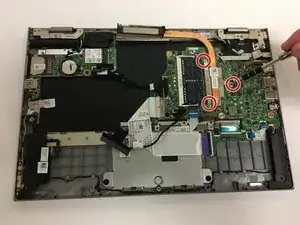

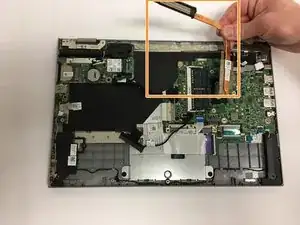

    • Use Phillips 0 screwdriver to loosen the 3 of the 3mm Phillips head screws from the heat sink.

    • Remove the heat sink

  12. nfAL1Xh2ilFEJZL2
    nfAL1Xh2ilFEJZL2
    TntxkwQJsjbTlDPy
    QTImdwVtTKq4Q1EV

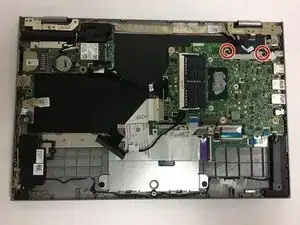

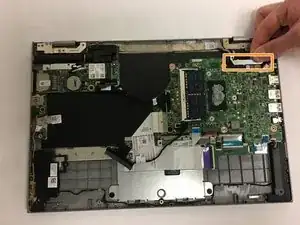

    • Use Phillips 0 screwdriver to unscrew the 2 of the 3mm screws holding the LCD cable bracket in place.

    • Remove the LCD cable bracket.

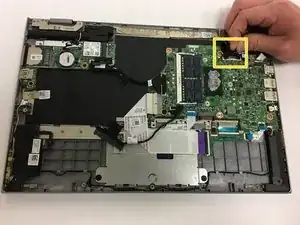

    • Unplug LCD and touchscreen cables.

  13. bI1vRLME1ZqYIdKi
    bI1vRLME1ZqYIdKi
    Xsbvn26WMAXI6Jcm
    SEG1VSZd51XORJYI

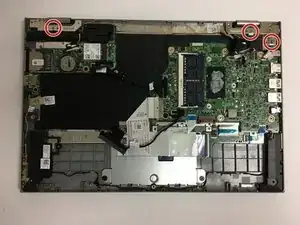

    • Use Phillips 0 screwdriver to unscrew and remove the 3 of the 7mm screws from the LCD display.

    • Open the laptop so that the screen and keyboard are face down on the desk.

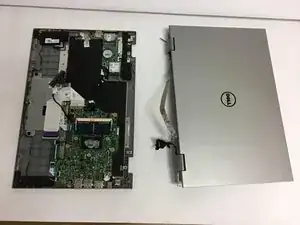

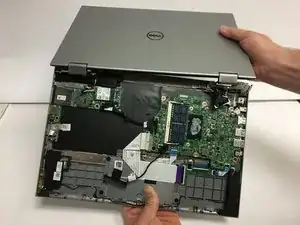

    • Carefully disconnect the LCD display by lifting the screen upward and away from the bottom half of the laptop.

  14. R6GwSSUACfSPZWMF
    R6GwSSUACfSPZWMF
    o3lpWZPBcOFeZRwW

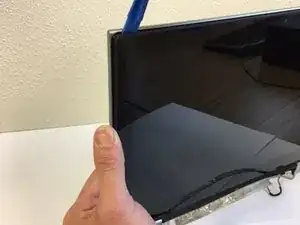

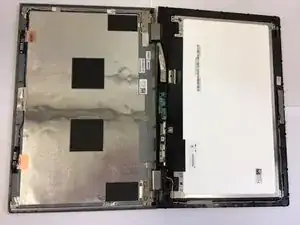

    • Using a plastic spudger carefully separate the casing of the screen.

  15. jSLNypErWNxmSciC
    jSLNypErWNxmSciC
    oqeTlYrsEHMlU5IO
    qZiUXKkSQiWgMPXb

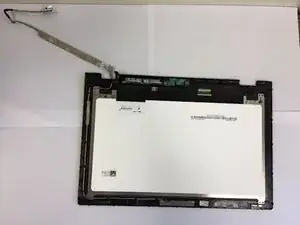

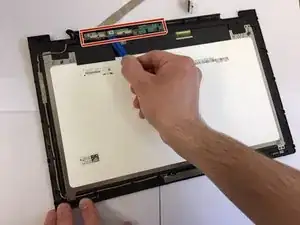

    • Use the plastic spudger to disconnect the mini circuit board from the casing.

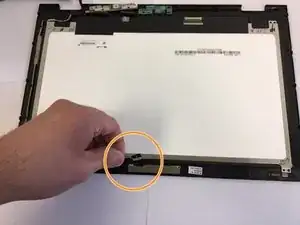

    • Disconnect the small wires connecting the screen to the casing.

  16. tjuCosSVgsYQq1VD
    tjuCosSVgsYQq1VD
    rFxSnhsQVyUu4nOV

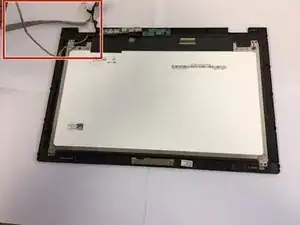

    • Remove the loose wiring from the perimeter of the screen.

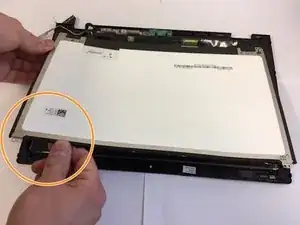

    • Gently separate the LCD screen from the laptop casing.
