Dell Inspiron 13-7359 Speaker Replacement

First flip over the laptop to expose the back panel

Use a Phillips #0 screwdriver to unscrew all ten 7mm Phillips head screws holding the back panel in place.

With a plastic spudger, carefully remove the back panel by prying each corner off individually

Slowly pick up the panel and set it aside

The battery will be the largest black component in the device located near the bottom edge. Using a Phillips #0 screwdriver, unscrew the two 3mm Phillips head screws holding in the battery.

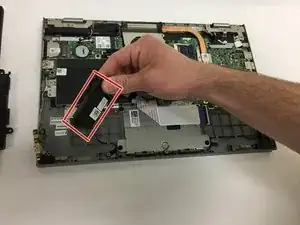

To remove the old battery, slightly lift the bottom edge of the battery with your hands

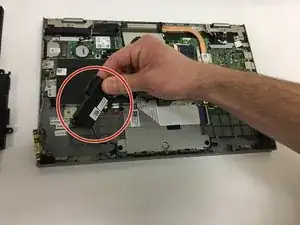

Now slowly pull the battery towards you to fully detach the battery

Following the removal of the Battery, remove the left speaker.

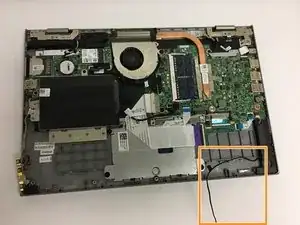

As you lift the left speaker, carefully lift the wire that connects the left and right speakers.

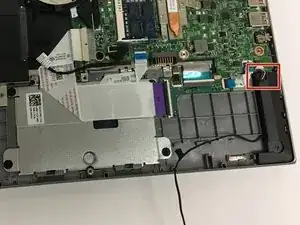

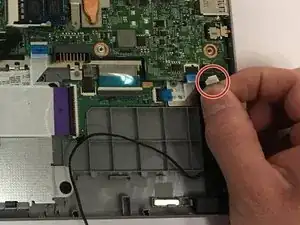

Disconnect the small wires attached to the top of the right side speaker as marked in the photo.

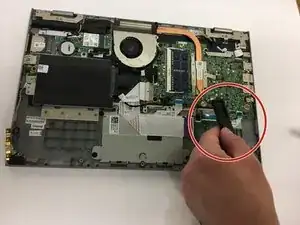

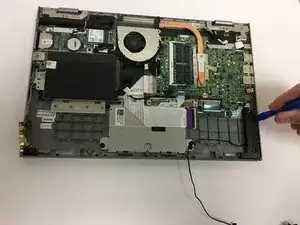

Use the plastic spudger to safely and easily detach the right speaker from the device.

Lift the right speaker out to complete the removal.
