Dell Inspiron 13-7359 USB/SD Card Reader IO Circuit Board Replacement

First flip over the laptop to expose the back panel

Use a Phillips #0 screwdriver to unscrew all ten 7mm Phillips head screws holding the back panel in place.

With a plastic spudger, carefully remove the back panel by prying each corner off individually

Slowly pick up the panel and set it aside

The battery will be the largest black component in the device located near the bottom edge. Using a Phillips #0 screwdriver, unscrew the two 3mm Phillips head screws holding in the battery.

To remove the old battery, slightly lift the bottom edge of the battery with your hands

Now slowly pull the battery towards you to fully detach the battery

Unscrew and remove the 2 of the 3mm Phillips head screws holding the hard drive in place.

Lift and hold the hard drive in your left hand.

Use your right hand to grab hold of the black wire connector attached on the right of the hard drive.

Carefully pull the connector away from the hard drive to completely disconnect from the laptop.

Unhook both of the wires attached to the WLAN adaptor.

Remove the 3.9mm Phillips screw using Phillips #0 screwdriver.

Once the screw is removed, one end of the WLAN adaptor will raise up.

Gently remove the WLAN adaptor.

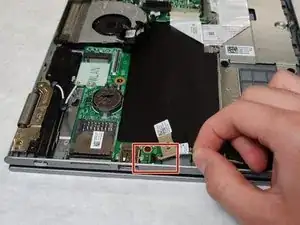

Using the plastic opening tool, unhook the black cable as shown.

Gently pull to unplug the speaker cable.

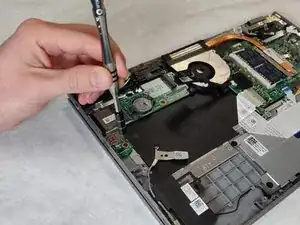

Using the Phillips #0 screwdriver, remove the 3.9mm Phillips screw as shown.

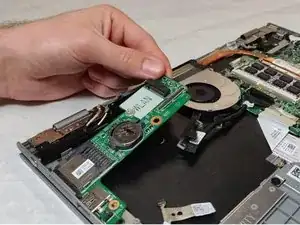

Gently raise the USB/SD Card Reader IO Circuit Board and pull the part free from the device.
