Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. B3GqRDICqQGkFUWA
  2. fLTdcKc3N1QEySUn

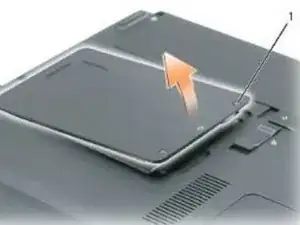

    • Lift the cover off the computer and set it aside.

  3. Iydu1exGcnBcVHMy

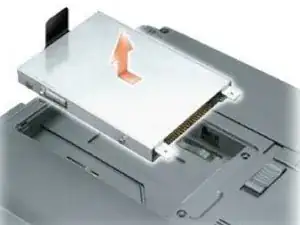

    • Slide the hard drive carrier away from the screw holes, and then use the tab to lift the hard drive straight up to remove it from the computer.

  4. Qccs3r2Lkw4Qfvjh
    • NOTICE: Use firm and even pressure to slide the drive into place. If you use excessive force, you may damage the connector.

    • Seat the NEW hard drive into the bay, and then slide it into the connector by sliding it toward the screw holes until it is fully seated.

  5. NGBpHNcQdur6DIZW
    • Replace the cover and tighten the screws.

Abschluss

To reassemble your device, follow these instructions in reverse order.
