Dell Inspiron 1300 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1300 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

8 - 20 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Memory Module.

    • Follow the instructions in Before Working Inside Your Computer.

    • Ground yourself by touching one of the metal connectors on the back of the computer.

    • NOTE: If you leave the area, ground yourself again when you return to the computer.

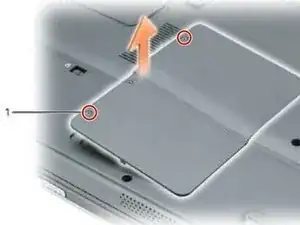

  2. 45F2U5vHmbqjJvKa

    • Turn the computer over, loosen the captive screws on the memory module/Mini PCI cover, and then remove the cover.

    • NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory-module securing clips.

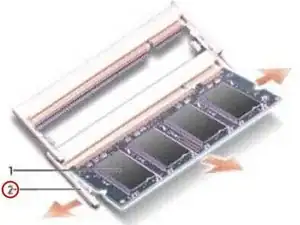

  3. jNPy25CScQ2fkMOJ

    • NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory-module securing clips.

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up.

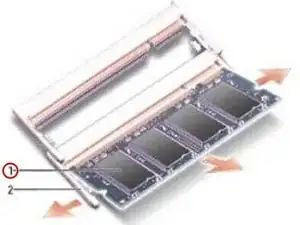

  4. FVaTpMkPtYBLEVXU

    • Remove the module from the connector.

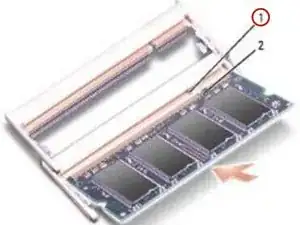

  5. 6ZcVQEQJsE1QOoeE
    6ZcVQEQJsE1QOoeE

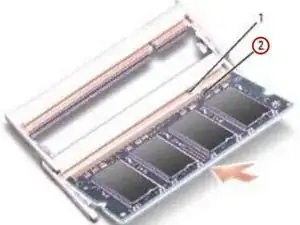

    HFEZyeTZKjSUraFH

    • Align the notch in the module edge connector with the tab in the connector slot.

  6. LT4uIkQOpmDYedMA

    • Slide the NEW module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place. If you do not feel the click, remove the module and reinstall it.

  7. eyEngeCAlqiOEVEP

    • Replace the memory module/Mini PCI cover and tighten the screws.

    • NOTICE: If the cover is difficult to close, remove the module and reinstall it. Forcing the cover to close may damage your computer.

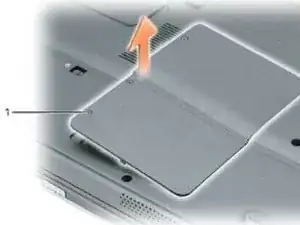

  8. WumaHSwcqDLcvWgK

    • Insert the battery into the battery bay, or connect the AC adapter to your computer and an electrical outlet.

Abschluss

To reassemble your device, follow these instructions in reverse order.
