Dell Inspiron 1320 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1320 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

2 - 7 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Display Assembly.

  1. BTYWhxI2WuV44jsv

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer)

    • Disconnect the display cable and the camera cable from their respective system board connectors.

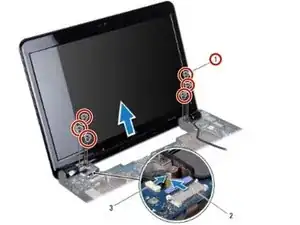

  2. KELDIAvVMPokWSIU

    • Remove the six screws (three on each side) that secure the display assembly to the computer base.

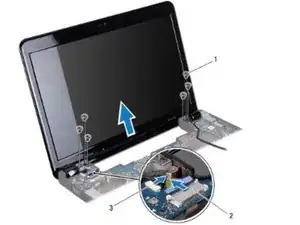

  3. QZTo3O3GllBcOQcS

    • Make note of the cable routing and carefully dislodge the Mini-Card antenna cables from the routing guides.

    • Lift the display assembly off the computer.

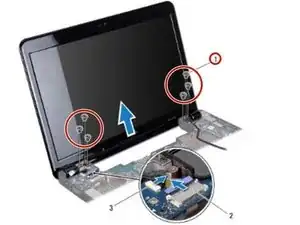

  5. TABXmqVdn3WQYiFS

    • Place the NEW display assembly in position and replace the six screws (three on each side) of the display assembly.

    • Route the Mini-Card antenna cables through the routing guides.

  7. DSdVBREXsDKC2SJr

    • Connect the display cable and the camera cable to their respective system board connectors.
