Dell Inspiron 1320 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1320 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

7 - 25 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. fykxTTPXypI2WpZk

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Remove the four screws that secure the hard drive assembly to the computer base.

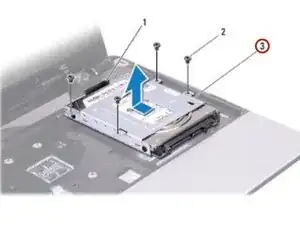

  2. DMF3AXREhFj6moIn

    • Slide the hard drive assembly to disconnect it from the system board connector.

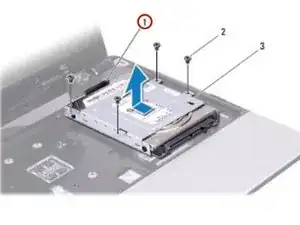

  3. STCt1fByUGq6ASbs

    • Pull the black pull-tab and lift the hard drive assembly out of the computer base.

  4. iaWF1iMEitnGqUic

    • Remove the four screws that secure the hard drive to the hard drive cage.

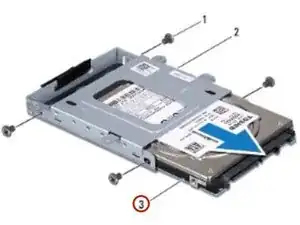

  5. LhGiDQLGQJsWyXrH

    • Slide the hard drive out of the hard drive cage.

  6. LSSKCs5dpbIDVQJO
    LSSKCs5dpbIDVQJO
    myxJwlcEPXX5eCfN

    • Slide the NEW hard drive into the hard drive cage.

  7. ehgOX2aQwMVNQUyA

    • Replace the four screws that secure the hard drive to the hard drive cage.

  8. YKYq1nWYdcrdNtNQ

    • Place the hard drive assembly in the computer base.

  9. ncEiiDLBvXfjGvSS

    • Slide and connect the hard drive assembly to the system board connector.

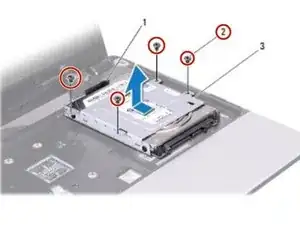

  10. cbCl4TLV4J4BI6TT

    • Replace the four screws that secure the hard drive assembly to the computer base.
