Dell Inspiron 13z 5323 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 13z 5323 Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

3 - 9 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Display Assembly.

  1. VWEjRK4FYjsywuVI
    VWEjRK4FYjsywuVI
    FaMlPlMqYVgW2I5c

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin".

    • Pull the pull-tab to disconnect the display cable from the system-board connector.

  2. mP5iqkpdECIJE3Ws

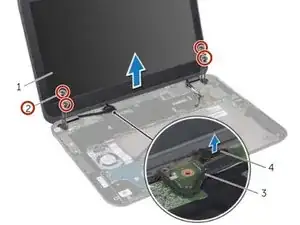

    • Remove the screws that secure the display assembly to the computer base.

  3. CvEcwvkQarfwEiVg

    • Lift the display assembly off the computer base.

  4. QMAnWs3VqOvDNcJe
    QMAnWs3VqOvDNcJe
    2oIGFM3qxdUYUBAY

    • Place the NEW display assembly in position and replace the screws that secure the display assembly to the computer base.

  5. DIuoEIBarBoPPI6Z

    • Connect the display cable to the system-board connector.
