Dell Inspiron 13z 5323 Memory Module Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 13z 5323 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

50 Sekunden - 4 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Memory Module.

  1. LmUbC1GVheSv6E3V

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin".

    • CAUTION: To prevent damage to the memory-module connector, do not use tools to spread the memory-module securing clips.

    • Close the display and turn the computer over.

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector until the memory module pops up.

  2. 4kQxkdls4ritDG5i
    4kQxkdls4ritDG5i
    RLKGeDWFhq4lvViX

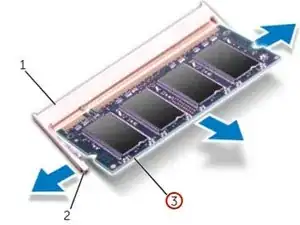

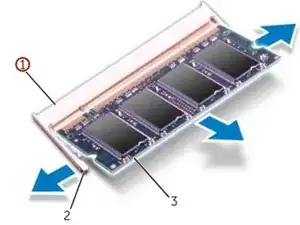

    • Remove the memory module from the memory-module connector.

  3. HqDKE1wbwshTVJNX
    HqDKE1wbwshTVJNX
    wnRn6LjJcGhYRwk3

    • CAUTION: If you need to install memory modules in two connectors, install a memory module in the connector labeled "DIMM A" before you install a memory module in the connector labeled "DIMM B."

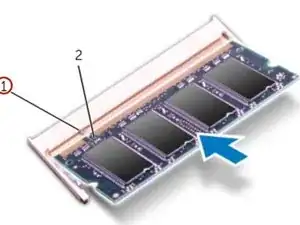

    • Align the notch on the memory module with the tab on the memory-module connector.

  4. BV2MVFd6EsZMGAf1

    • Slide the memory module firmly into the connector at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not in stalled properly, the computer may not boot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
