Dell Inspiron 13z N301z Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 13z N301z Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

5 - 7 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. kB4OhFHjVSFKfwuP

    • Follow the instructions in Before You Begin.

    • Turn the computer over.

    • Disconnect the Mini-Card antenna cables from the computer base.

  2. yp42ffLU2DUDQB4e

    • Turn the computer over and open the display as far as possible.

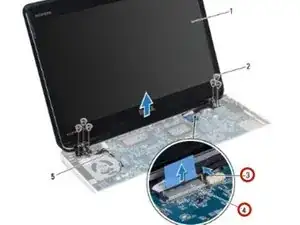

  3. OPJoYLnayHIYEQMX

    • Disconnect the display cable and the camera cable from their connectors on the system board.

  4. YG3ufU2YuOmZGej1

    • Make a note of the routing of the Mini-Card antenna cables and remove the cables from the routing guides.

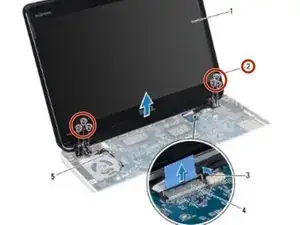

  5. x1Q6VVGG2xDpMyN5

    • Remove the six screws (three on each side) that secure the display assembly to the computer base.

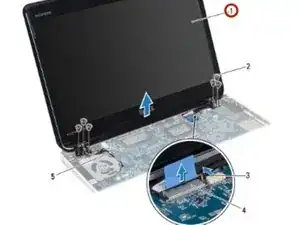

  6. D2iFvPPBLN2asHVe

    • Lift and remove the display assembly off the computer base.

  7. jGkbNdogKAQHBeLj
    jGkbNdogKAQHBeLj
    gktHEHXj3MOb6wUX

    • Place the NEW display assembly in position and replace the six screws (three on each side) that secure the display assembly to the computer base.

  8. bteExPvIi1aRJHpc

    • Route the Mini-Card antenna cables through the slot on the computer base.

  9. NnWHcZPUukhD3eJF

    • Connect the display cable and the camera cable to their connectors on the system board.
