Dell Inspiron 13z N301z Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 13z N301z Memory Modules Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

35 Sekunden - 2 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. TbfUVwQRPTUSw4HF

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

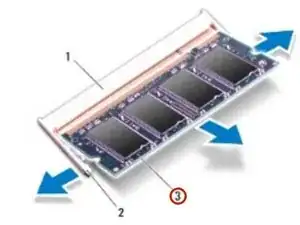

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the memory module pops up.

  2. 5luwdGE6HiJUQkId
    5luwdGE6HiJUQkId
    JFUNJnQTpOGk3Bwp

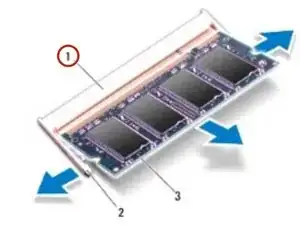

    • Remove the memory module from the memory-module connector.

  3. o3XP5uPFcXZbdCrr
    o3XP5uPFcXZbdCrr
    rLoL3txQCAQhDMqJ

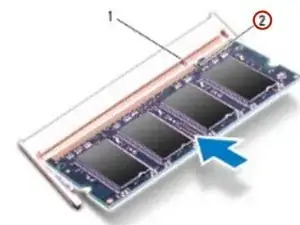

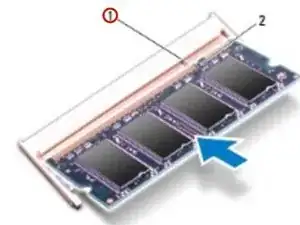

    • Align the notch in the memory module with the tab in the memory module connector.

  4. YoWvh2deLhQb2CHk

    • Slide the memory module firmly into the memory-module connector at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
