Dell Inspiron 14 3459 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14 3459 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 - 25 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. IWh3uZfbS5NfEZaG

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • Remove the screws that secure the hard-drive assembly to the computer base.

  2. KLuEIYD3lCOaeo2L
    KLuEIYD3lCOaeo2L
    KZmX3shwlQbxxOnp

    • Open the latch and disconnect the hard-drive cable from the system board.

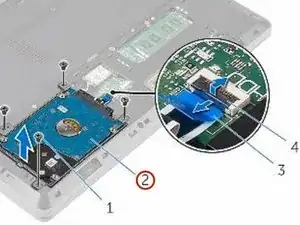

  3. JL5OM34ot1vlCSLF

    • Lift the hard-drive assembly off the computer base.

  4. dTsW4vLZEX5UdgC3

    • Remove the screws that secure the hard-drive bracket to the hard drive.

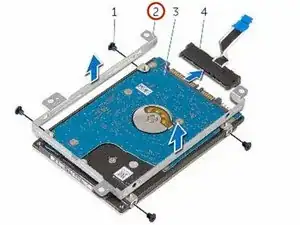

  5. muQTfBPNLyJS55BK

    • Lift the hard-drive bracket off the hard drive.

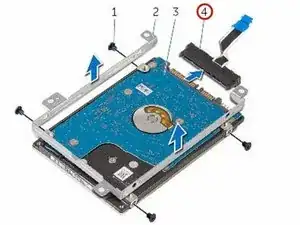

  6. QteXVMweCvEAN6oS

    • Disconnect the interposer from the hard drive.

  7. JM4nCfCbMuNcJnML

    • Connect the interposer to the NEW hard drive.

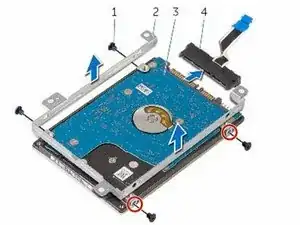

  8. dWXjxbuSuEcqmlXd

    • Align the screw holes on the hard-drive bracket with the screw holes on the hard drive.

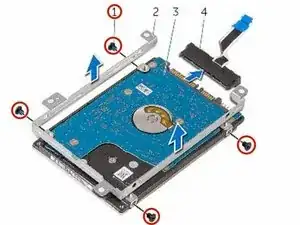

  9. cpRN5A1BRbdV4Wxi

    • Replace the screws that secure the hard-drive bracket to the hard drive.

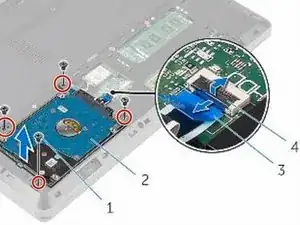

  10. aaVxahvWVAFwyOGJ

    • Align the screw holes on the hard-drive assembly with the screw holes on the computer base.

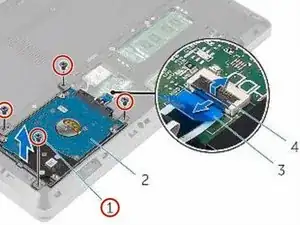

  11. 14SvnvCXdWCjgSbp

    • Replace the screws that secure the hard-drive assembly to the computer base.

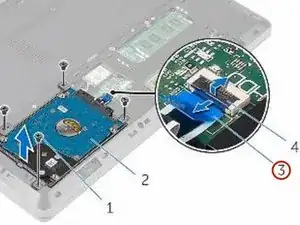

  12. ACZeqwLNXXQCqrTQ
    ACZeqwLNXXQCqrTQ

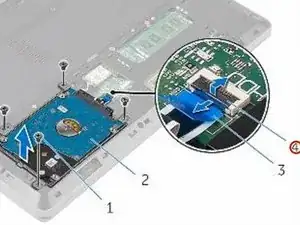

    fcDKrtVOjtKLGUQx

    • Slide the hard-drive cable into the system board and close the latch to secure the cable.
