Dell Inspiron 14 3467 Hard-Drive Replacement

Geschrieben von: darrius
  • Kommentare: 0
Dell Inspiron 14 3467 Hard-Drive Replacement

Schwierigkeitsgrad

Very easy

Schritte

10

Zeitaufwand

10 - 15 Minuten

Einleitung

How To Remove And Replace The Hard-Drive

  1. bIDekukPFcGTgGlJ

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in [http://n Before working inside your computer.]

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • Open the latch, and disconnect the hard-drive cable from the connector on the system board.

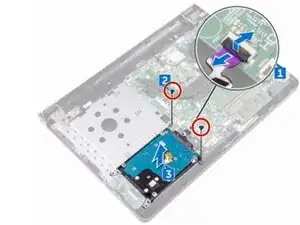

  2. KPrxxSc6nAgMywPv

    • Remove the two screws (M2x3) that secure the hard-drive assembly to the palm-rest assembly.

  3. WkHeVZeCPBlfSj6P

    • Lift the hard-drive assembly along with its cable off the palm-rest assembly.

  4. ZV15Lk1BFLoMQstf

    • Remove the four screws (M3x3) that secure the hard-drive bracket to the harddrive assembly.

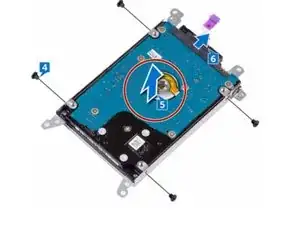

  5. DeCaInubjw2HJwVW

    • Lift the hard-drive assembly off the hard-drive bracket.

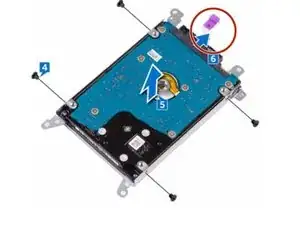

  6. t5Wg3ob2hGiFjcbk

    • Disconnect the interposer from the hard drive.

  7. g6VouQhIBJmGuiXv

    • Connect the interposer to the NEW hard drive

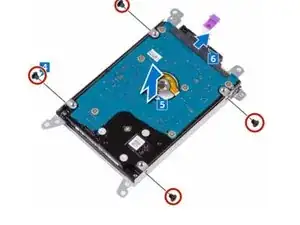

  8. 2Dg1rokVYLijpZr5

    • Align the screw holes on the hard-drive bracket with the screw holes on the hard-drive assembly.

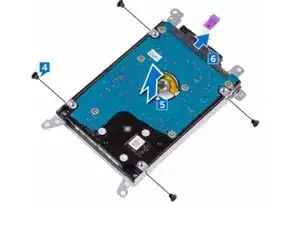

  9. NWureLrGEM3EYMML

    • Replace the four screws (M3x3) that secure the hard-drive bracket to the harddrive assembly.

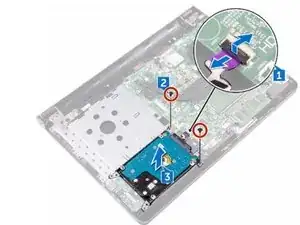

  10. IsvtJrDfAjHZciXB

    • Replace the two screws (M2x3) that secure the hard-drive assembly to the palm-rest assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
