Dell Inspiron 14 3468 Hard-Drive Replacement

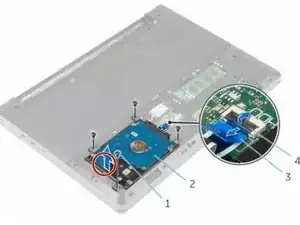

Remove the screws that secure the hard-drive assembly to the computer base.

Open the latch and disconnect the hard-drive cable from the system board.

Lift the hard-drive assembly off the computer base.

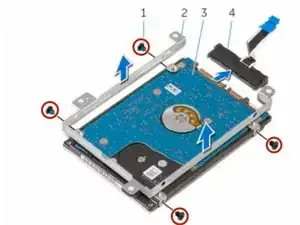

Remove the screws that secure the hard-drive bracket to the hard drive.

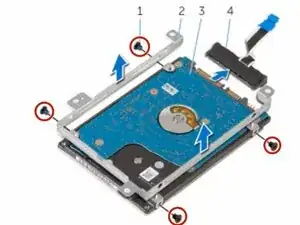

Lift the hard-drive bracket off the hard drive.

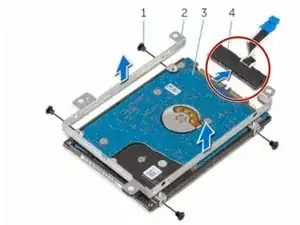

Disconnect the interposer from the hard drive.

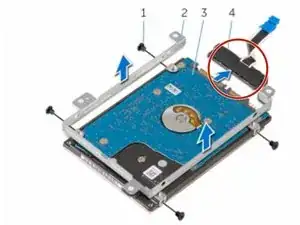

Connect the interposer to the NEW hard drive.

Align the screw holes on the hard-drive bracket with the screw holes on the hard drive.

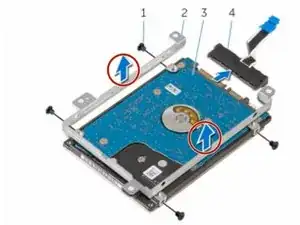

Replace the screws that secure the hard-drive bracket to the hard drive.

Align the screw holes on the hard-drive assembly with the screw holes on the computer base.

Replace the screws that secure the hard-drive assembly to the computer base.

Slide the hard-drive cable into the system board and close the latch to secure the cable.
