Dell Inspiron 14 5100 Fan Replacement

Geschrieben von: Ting-Hao Lao
  • Kommentare: 0
Dell Inspiron 14 5100 Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

9 - 10 Minuten

Einleitung

Verify with the device’s troubleshooting page whether the replacement of your fan is required for your situation.

This guide will go through the process of replacing the fan for the Dell Inspiron 14 5100.

A faulty fan can cause your device to overheat due to the lack of ability to cool the device by itself.

If this guide is unnecessary, go to our device page to look for the correct guide for your situation.

  1. MG2ijlgq6WMSWKXt
    MG2ijlgq6WMSWKXt
    VNRc1UhOTaJRXpb4
    liqTxT3NkC16uF6W

    • Make sure to disconnect the power source to the device.

    • Remove nine screws securing the base cover of the laptop's keyboard assembly using the Phillips #0 screwdriver.

    • There are 2 sets of screws.

    • Remove the 3 captive screws.

    • Remove the 6M2*6 screws.

  2. Fan2atG1KsUROnAf
    Fan2atG1KsUROnAf
    FqbmkLhL5EhiWMYZ

    • Pry open the laptop to separate the base cover from the keyboard assembly.

    • You may use your fingertips or use plastic opening tools.

  3. cCyMmGWUWHVqvtx1

    • Remove the two Phillips #0 screws securing the fan to the keyboard assembly.

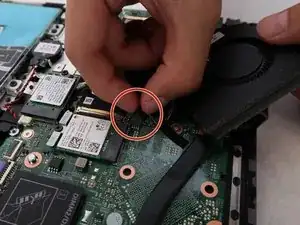

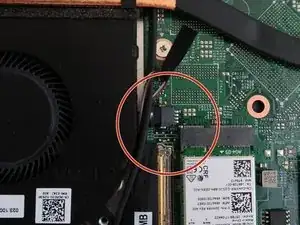

  4. OcyZGAWveHvYiPIJ
    OcyZGAWveHvYiPIJ
    2PGSlCHH53wNDQ5M

    • Remove the tape securing the fan cable to the motherboard.

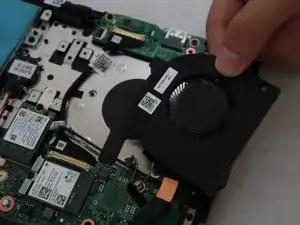

  5. 5fShJt2XTqgMxS2i

    • Lift the fan and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
