Dell Inspiron 14 5100 Touch Pad Replacement

Geschrieben von: Jonn Ross Olofernes
  • Kommentare: 0
Dell Inspiron 14 5100 Touch Pad Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

20 Minuten

Einleitung

Verify with the device’s troubleshooting page whether the replacement of your touchpad is required for your situation.

This guide will go through the process of replacing the touchpad for the Dell Inspiron 14 5100.

A faulty touchpad can cause the inability to use the cursor when the device is in use.

If this guide is unnecessary, go to our device page to look for the correct guide for your situation.

  1. MG2ijlgq6WMSWKXt
    MG2ijlgq6WMSWKXt
    VNRc1UhOTaJRXpb4
    liqTxT3NkC16uF6W

    • Make sure to disconnect the power source to the device.

    • Remove nine screws securing the base cover of the laptop's keyboard assembly using the Phillips #0 screwdriver.

    • There are 2 sets of screws.

    • Remove the 3 captive screws.

    • Remove the 6M2*6 screws.

  2. Fan2atG1KsUROnAf
    Fan2atG1KsUROnAf
    FqbmkLhL5EhiWMYZ

    • Pry open the laptop to separate the base cover from the keyboard assembly.

    • You may use your fingertips or use plastic opening tools.

  3. dUnCSMRdEJHS1C3S
    dUnCSMRdEJHS1C3S
    WYJgp6bgn6JhZXrb

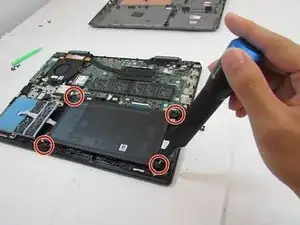

    • Remove the four Phillips #0 screws securing the battery to the keyboard assembly.

  4. ndUHnIGr2HeUBe5u
    ndUHnIGr2HeUBe5u
    DMJ225ZTofqdYrI1
    WVUfoTo2Lxxs5lmc

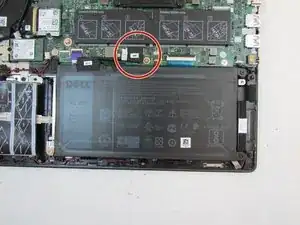

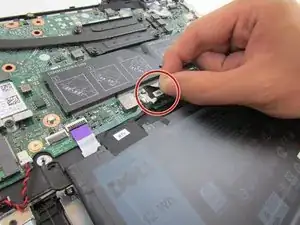

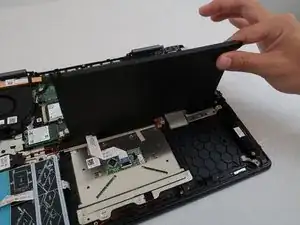

    • Peel off the tape securing the battery cable to the battery cable connector.

    • Disconnect and remove the old battery.

  5. GfVdRMJr21AHYFAL
    GfVdRMJr21AHYFAL
    StI5fEr6LS6fqOQt
    c2gAFesHMJCCEbTl

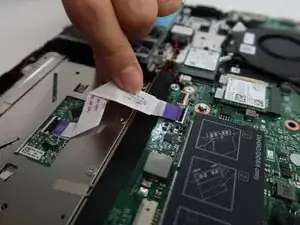

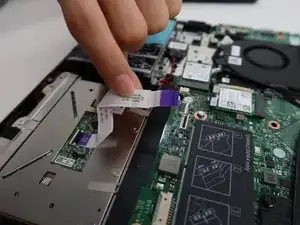

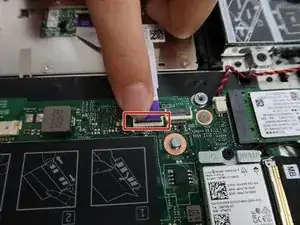

    • Disconnect the touchpad cable attached to the motherboard.

    • Be careful lifting the Flat Flex Cable (FFC) connector as it is quite fragile.

  6. YU5lqxkITHoXnZ5s
    YU5lqxkITHoXnZ5s
    5mLE4MlPC6MHbyls

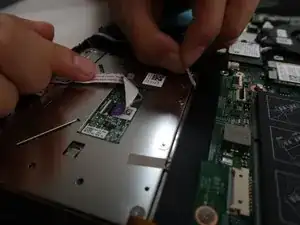

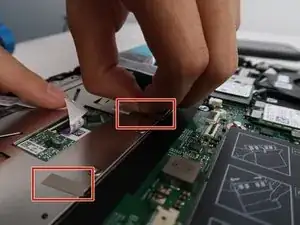

    • Peel off the tapes securing the touchpad to the keyboard assembly.

  7. 1KCgUOf1sCUFECFc

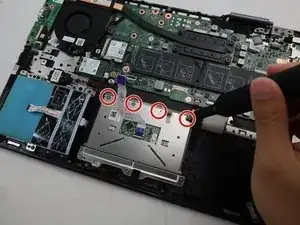

    • Remove the four screws securing the touchpad to the keyboard assembly using the Phillips #0 screwdriver.

  8. TqxHcyhp6NMuvLyg
    TqxHcyhp6NMuvLyg
    jVMunCwglDOSI2sU
    xiVnjKfPLPaWlQcW

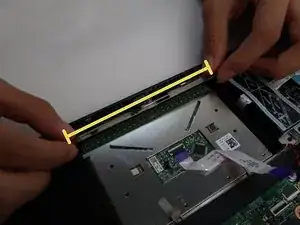

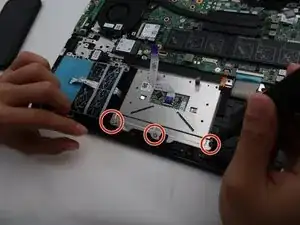

    • Remove the three screws securing the touchpad bracket to the keyboard assembly using the Phillips #0 screwdriver.

    • Lift the touchpad bracket.

  9. GN6iaAKA1YRgEld1
    GN6iaAKA1YRgEld1
    kosuIBiWFVxnKNdX

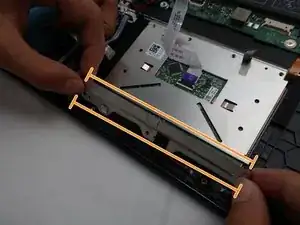

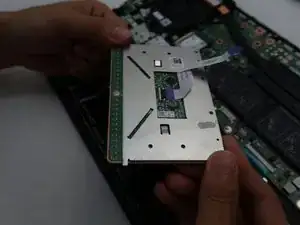

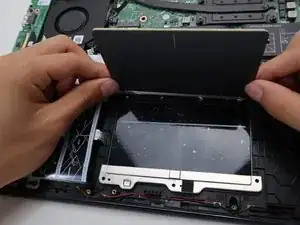

    • Lif tthe touchpad and replace with the new touchpad.

    • Make sure to guide the touchpad cable along with the touchpad to avoid damaging the parts.

    • Lift the touchpad at an angle from under the touchpad bracket to avoid damaging the touchpad or the touchpad bracket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
