Dell Inspiron 14 5443 Hard Drive Replacement

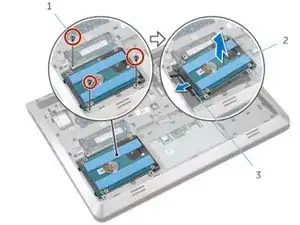

Remove the screws that secure the hard-drive assembly to the base frame.

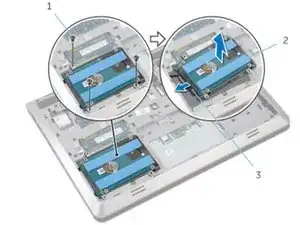

Gently lift the hard-drive assembly out of the base frame and disconnect the hard-drive cable from the hard drive.

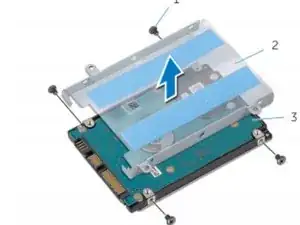

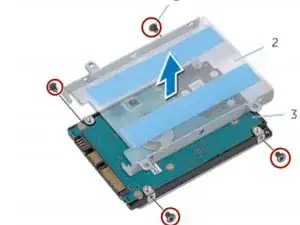

Remove the screws that secure the hard-drive bracket to the hard drive.

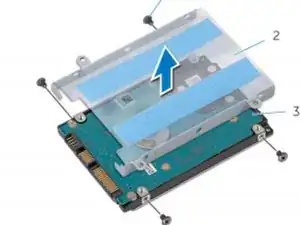

Lift the hard-drive bracket off the hard drive

Place the hard-drive bracket on the NEW hard drive.

Align the screw holes on the hard drive-bracket with the screw holes on the hard drive.

Replace the screws that secure the hard-drive bracket to the hard drive.

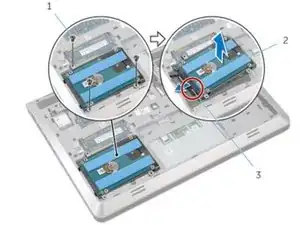

Connect the hard-drive cable to the hard drive.

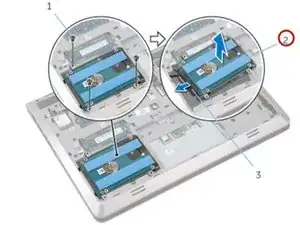

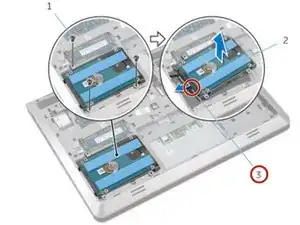

Place the hard-drive assembly in the base frame and align the screw holes on the hard-drive assembly with the screw holes on the base frame.

Replace the screws that secure the hard-drive assembly to the base frame.
