Dell Inspiron 14 7447 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14 7447 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

13

Zeitaufwand

15 - 25 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. sWhavJFXKUHCbXIb

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • CAUTION: To avoid data loss, do not remove the hard drive while the computer is in Sleep or On state.

    • Using the pull-tab, disconnect the hard-drive cable from the system board.

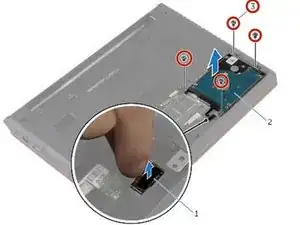

  2. XUk2YpugASOWLx3p

    • Remove the screws that secure the hard-drive assembly to the computer base.

  3. gdAu6TpbHJTOHYJp

    • Gently lift the hard-drive assembly out of the computer base.

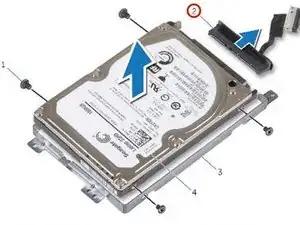

  4. vgTxfjQcStEobDLH

    • Disconnect the interposer from the hard drive.

  5. v2SiHd5S5XlvrNJw

    • Remove the screws that secure the hard-drive bracket to the hard drive.

  6. hsuHHsGwtwFqhZWg
    hsuHHsGwtwFqhZWg

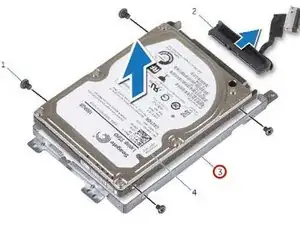

    RO1TSgwUemcZMAH5

    • Lift the hard drive out of the hard-drive bracket.

  7. 2igDUVIg3dMFwuZs

    • Connect the interposer to the NEW hard drive.

  8. OBi6wjZBXhdkFODt

    • Align the screw holes on the hard drive-bracket with the screw holes on the hard drive.

  9. fyyYLLP3daFqrBUt

    • Replace the screws that secure the hard-drive bracket to the hard drive.

  10. 5yXuHVQkhpJIn3Jb

    • Place the hard-drive assembly into the hard-drive bay.

  11. WjiUZYyLHvomfRfQ

    • Align the screw holes on the hard-drive assembly with the screw holes on the computer base.

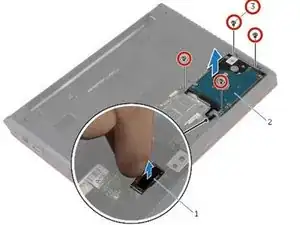

  12. GcfHX1kZ2DRy2lGR

    • Replace the screws that secure the hard-drive assembly to the computer base.

  13. r6OnEPl4EZvpqN3Y

    • Connect the hard-drive cable to the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
