Dell Inspiron 14 7460 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14 7460 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

15 - 40 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. jUuHELJtoejvWFRQ

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions inAfter Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • CAUTION: To avoid data loss, do not remove the hard drive while the computer is in sleep or on state.

    • Open the latch and disconnect the hard-drive cable from the system board.

  2. GIlBtTtjrIZxsY6O

    • Remove the four screws (M2x3) that secure the hard-drive assembly to the palm rest and keyboard assembly.

  3. 3ibxCsZRaIYNXAYx

    • Lift the hard-drive assembly off the palm rest and keyboard assembly.

  4. sZunU1tOERMoR21x

    • Disconnect the interposer from the hard-drive assembly.

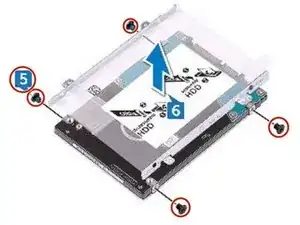

  5. piJARA2IGO2Cf5im

    • Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

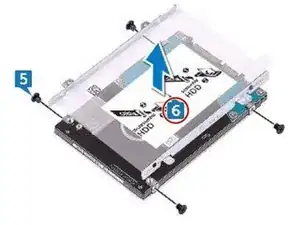

  6. Q5RGvubuFEaFkQWD

    • Lift the hard-drive bracket off the hard drive.

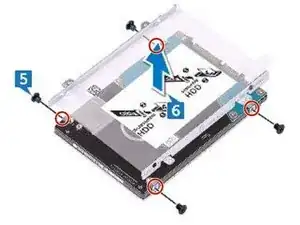

  7. cqbiGSsDpDUxSQnF

    • Align the screw holes on the hard-drive bracket with the screw holes on the NEW hard drive.

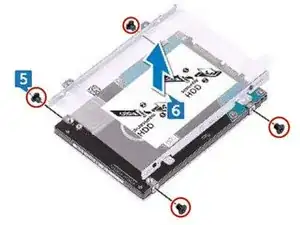

  8. DmobckAksHWZmuRW

    • Replace the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

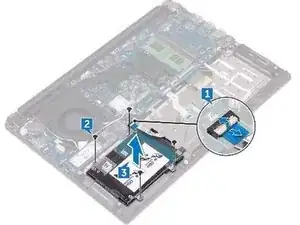

  9. FLRxpXD5ONTMSnFv

    • Connect the interposer to the hard-drive assembly.

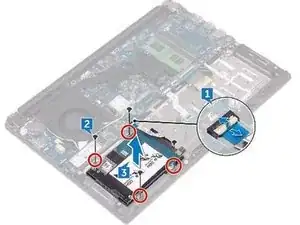

  10. rbXCDoQTQfIFYDiJ

    • Align the screw holes on the hard-drive assembly with the screw holes on the palm rest and keyboard assembly.

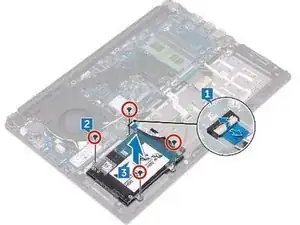

  11. BWhYYSHjXB1ySRNb

    • Replace the four screws (M2x3) that secure the hard-drive assembly to the palm rest and keyboard assembly.

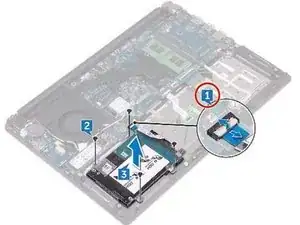

  12. VAqTnxTp2GDNTDyC

    • Connect the hard-drive cable to the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
