Dell Inspiron 14 7460 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14 7460 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

45 Sekunden - 3 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Memory Modules.

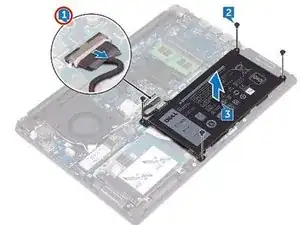

  1. 6pXnCNT3aLewnXEj

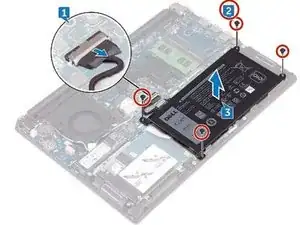

  2. nnXMZEXeGon1pAMi

    • Remove the four screws (M2x3) that secure the battery to the palm rest and keyboard assembly.

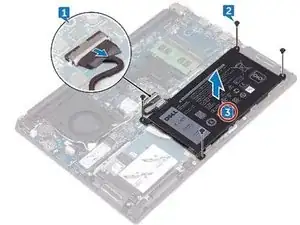

  3. FNe4VV1S5uEogmeR

    • Lift the battery off the palm rest and keyboard assembly.

    • Press and hold the power button for five seconds to ground the system board.

  5. FH2vDANMLwW2vpwm

    • Align the screw holes on the NEW battery with the screw holes on the palm rest and keyboard assembly.

  6. RMLVqflHOJUgAJse

    • Replace the four screws (M2x3) that secure the battery to the palm rest and keyboard assembly.

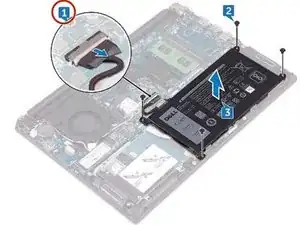

  7. JjIOpxJIAKwwlXer

    • Connect the battery cable to the system board.

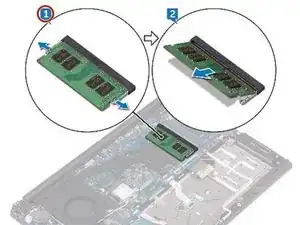

  8. ETiIQBrk1PAnoERQ

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module slot until the memory module pops up.

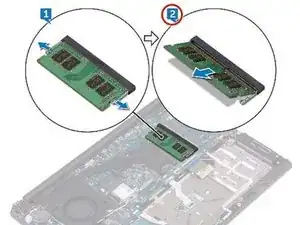

  9. UDO2RmhgxJlQrIar

    • Remove the memory module from the memory-module slot.

  10. wJdUDWZfEn5HZdAt

    • Align the notch on the NEW memory module with the tab on the memory-module slot.

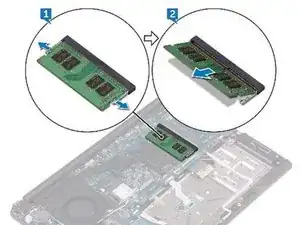

  11. qFqbBkAhITtSRVpu

    • Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.

    • NOTE: If you do not hear the click, remove the memory module and reinstall it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
