Dell Inspiron 14 Gaming 7466 Battery Replacement

Geschrieben von: Terrence15

Kommentare: 0

Dell Inspiron 14 Gaming 7466 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

4 - 25 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery.

Werkzeuge

Phillips #0 Screwdriver

Schritt 1

HrIxFEs5bZ2UNIo2

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
Remove the battery cable from the routing guide on the computer base.

Schritt 2

Nb2m4Ak3Gd6K4Z32

Remove the four screws (M2x4 T8) that secure the battery to the computer base.

Schritt 3

U1KKTmTCTGsGHSe4

Lift the battery off the computer base.

Schritt 4

vkdiinbcUHSHTaej

Turn the computer over, open the display, and press and hold the power button for five seconds to ground the system board.

Schritt 5

bZkTXOi6TQluNk34

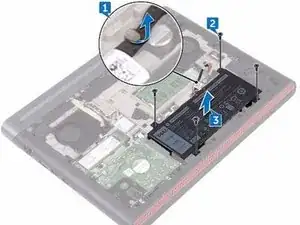

Align the screw holes on the NEW battery with the screw holes on the computer base.

Schritt 6

inwRSXJOdXWbfmjO

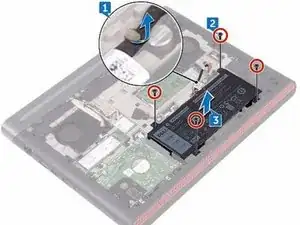

Replace the four screws (M2x4 T8) that secure the battery to the computer base.

Schritt 7

OXdpGksSUyE5ODWj

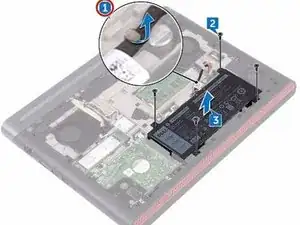

Route the battery cable through the routing guide on the computer base.
