Dell Inspiron 14 Gaming 7467 Battery Replacement

Geschrieben von: Terrence15

Kommentare: 0

Dell Inspiron 14 Gaming 7467 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 30 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery.

Werkzeuge

Phillips #0 Screwdriver

Schritt 1

LSfKLVdK6cyk22r5

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
Remove the battery cable from the routing guide on the computer base.

Schritt 2

KordXAACDjFBOJ2F

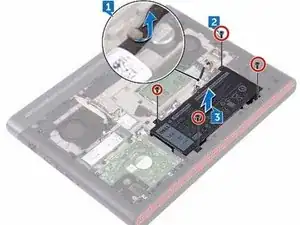

Remove the four screws (M2x4 T8) that secure the battery to the computer base.

Schritt 3

kycTfZvVjUK4JvkI

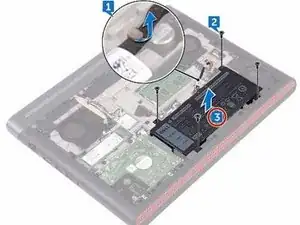

Lift the battery off the computer base.

Schritt 4

ipZbLcyi2AjDpQhk

Turn the computer over, open the display, and press and hold the power button for five seconds to ground the system board.

Schritt 5

bPZXQujs3HlkOtGo

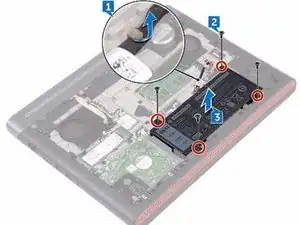

Align the screw holes on the NEW battery with the screw holes on the computer base.

Schritt 6

AoFsvfYTJJvcENis

Replace the four screws (M2x4 T8) that secure the battery to the computer base.

Schritt 7

j4Ug1OLsMXUEJ6PK

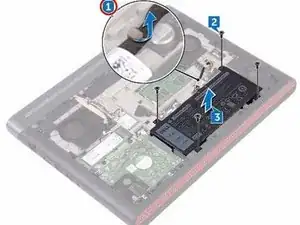

Route the battery cable through the routing guide on the computer base.
