Dell Inspiron 14 Gaming 7467 Display Assembly Replacement

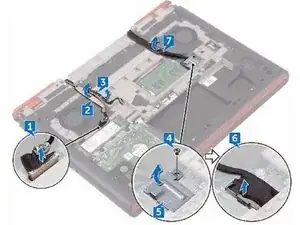

Using the pull-tab, disconnect the camera cable from the system board.

Peel off the camera cable from the computer base.

Remove the screw (M2x3) that secures the display-cable bracket to the system board.

Lift the display-cable bracket off the system board.

Using the pull-tab, disconnect the display cable from the system board.

Peel off the display cable from the computer base.

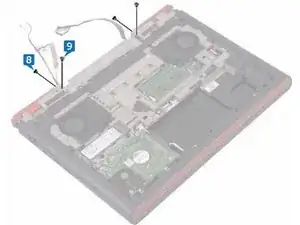

Remove the two screws (M2x3) that secure the display assembly to the computer base.

Remove the two screws (M2.5x5) that secure the display assembly to the computer base.

Turn the computer over and open the display.

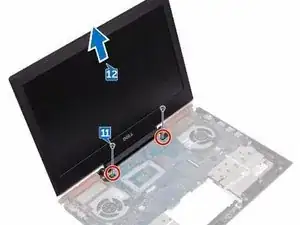

Remove the two screws (M2.5x5) that secure the display assembly to the computer base.

Lift the display assembly off the computer base.

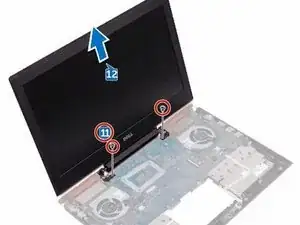

Align the screw holes on the NEW display assembly with the screw holes on the computer base.

Replace the two screws (M2.5x5) that secure the display assembly to the computer base.

Close the display and turn the computer over.

Replace the two screws (M2.5x5) that secure the display assembly to the computer base.

Replace the two screws (M2x3) that secure the display assembly to the computer base.

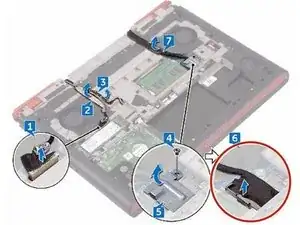

Adhere the display cable and the camera cable to the computer base.

Route the antenna cables through the routing guides on the computer base.

Connect the display cable and camera cable to the system board.

Align the screw hole on the display-cable bracket with the screw hole on the system board.

Replace the screw (M2x3) that secures the display cable bracket to the system board.
