Dell Inspiron 14 M4010 Memory Modules Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

35 Sekunden - 2 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. dlPf5QnpIEfOOkLB

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector until the module pops up.

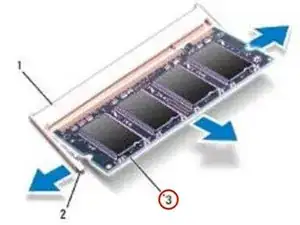

  2. L56igHmvM6cIokTI

    • Remove the memory module from the memory-module connector.

    • CAUTION: If you need to install memory modules in two connectors, install a memory module in the connector labeled "DIMM A" before you install a memory module in the connector labeled "DIMM B."

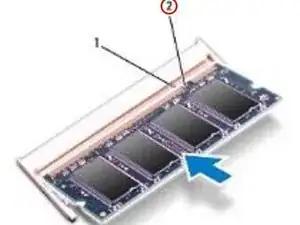

  3. CA5nDMcWvm3QsD2C

    • Align the notch in the NEW memory module with the tab in the memory-module connector.

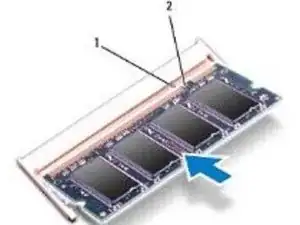

  4. QP1gLRr3eCq5hFNk

    • Slide the memory module firmly into the slot at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.
