Dell Inspiron 14 M4040 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14 M4040 Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 15 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Display Assembly.

  1. aKArNotCr5aGS52k

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Disconnect the display cable from the connector on the system board.

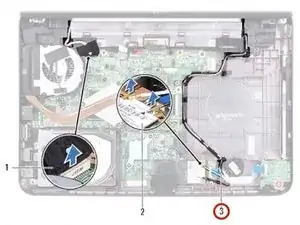

  2. GfEtEjSuABHYFdVC

    • Disconnect the Mini-Card antenna cables from the connectors on the Mini-Card.

  3. s4qMFg1P26BpRhFA

    • Make a note of the display cable and Mini-Card antenna cables routing and remove the cables from the routing guides.

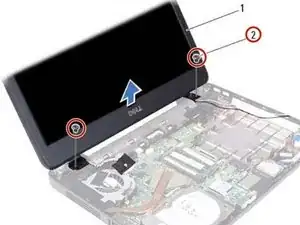

  4. uyYtNVRs6xH3dsTs

    • Remove the two screws that secure the display assembly to the computer base.

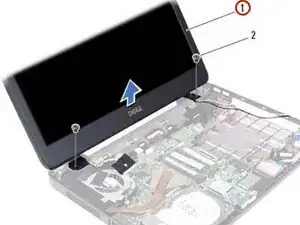

  5. oo2VEPWX4rjnk5cO

    • Lift and remove the display assembly out of the computer base.

  6. VhmaUndUqsXMKQR2

    • Place the NEW display assembly in position and replace the two screws that secure the display assembly to the computer base.

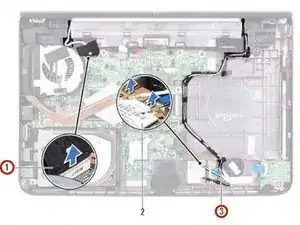

  7. CgEXdSHHsU4dTmBH

    • Route the display cable and Mini-Card antenna cables through the routing guides.

  8. wRWFeKdST1ohQdQy

    • Connect the display cable to the connector on the system board.
