Dell Inspiron 14 M4040 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14 M4040 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

35 Sekunden - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. HfAH2AVwvKmOIn3x

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in "Before You Begin".

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • Slide the hard-drive assembly to the left to disconnect it from the connector on the system board.

  2. DGcZU33W3SK2R3Ae

    • Lift the hard-drive assembly out of the computer base.

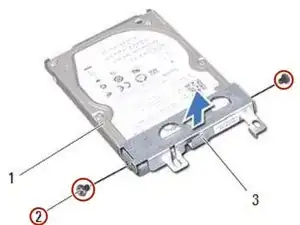

  3. bpkpP6HPCYlFskov

    • Remove the two screws that secure the hard-drive bracket to the hard drive.

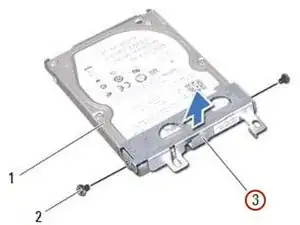

  4. WNacJkeEPkZydqWs
    WNacJkeEPkZydqWs

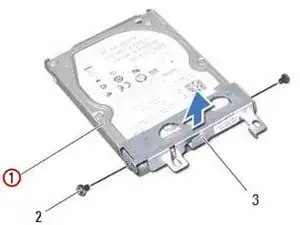

    cIPHNLbqmWX6ZeVJ

    • Place the hard-drive bracket on the NEW hard drive.

  5. 1qGl3MDUmM3NPrII

    • Replace the two screws that secure the hard-drive bracket to the hard drive.

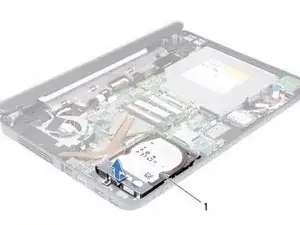

  6. w5rICCQFDFDIqQEZ

    • Place the hard-drive assembly on the computer base.

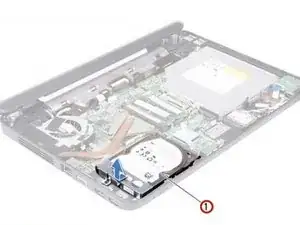

  7. kWHbYT1QwbTGURCD

    • Push the hard-drive assembly towards the right to connect it to the connector on the system board.
