Dell Inspiron 14 M4040 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14 M4040 Memory Modules Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

15 Sekunden - 1 Minute

Einleitung

In this guide, we will show you how to remove and replace the Memory Modules.

  1. IQT4MJPhTrx26WO6

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in "Before You Begin".

    • CAUTION: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector until the module pops up.

  2. Kk5pcTBGVPcrgGlq

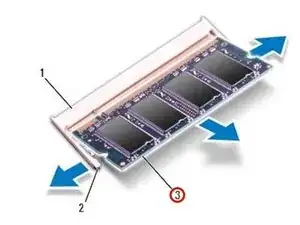

    • Remove the memory module from the memory-module connector.

  3. jdUMXxWm41Wxh2jF

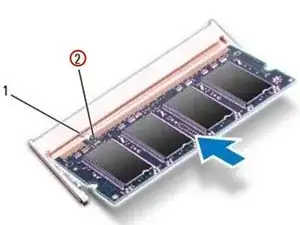

    • Align the notch in the NEW memory module with the tab in the memory-module connector.

  4. lymOAWpw6jurGlbP

    • Slide the memory module firmly into the slot at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.
