Dell Inspiron 14 N4020 Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

15 Sekunden - 1 Minute

Einleitung

In this guide, we will show you how to remove and replace the Battery.

  1. FWXFGE5HTXGJUr6g

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Shut down the computer and turn it over.

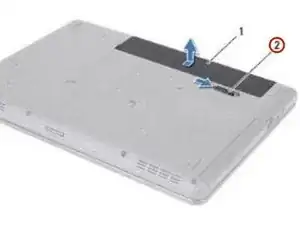

  2. HfciS1HDc4hu6ip5

    • Slide the battery release latch to the unlock position.

  3. OpvFgviTkCSxL1DN

    • Slide and lift the battery out of the battery bay.

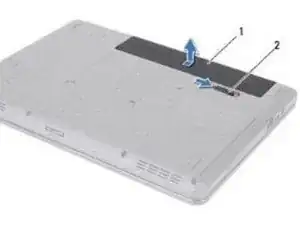

  4. MYq6ClYylGwpYGW3

    • Align the tabs on the battery with the slots on the battery bay.

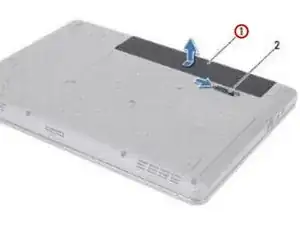

  5. OZXmL1BWskEX1DCM

    • Slide the battery into the battery bay until it clicks into place.
