Dell Inspiron 14 N4020 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14 N4020 Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

2 - 10 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Display Assembly.

  1. t2gagHIKcEfqrtXk

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Disconnect the display cable from the connector on the system board.

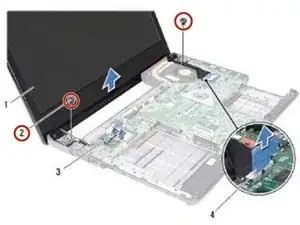

  2. KHakbWuv43FKZP4w

    • Remove the two screws (one on each side) that secure the display assembly to the computer base.

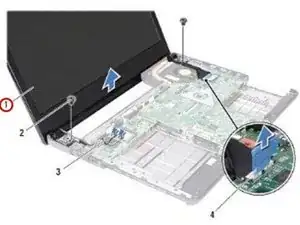

  3. qfM5bFiSYG1eEOFa

    • Lift and remove the display assembly out of the computer base.

  4. KUUSFhjgFEAPpLbA

    • Place the NEW display assembly in position and replace the two screws (one on each side) that secure the display assembly to the computer base.

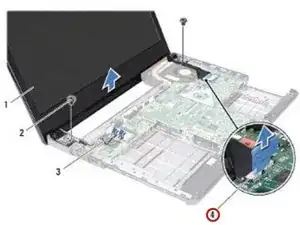

  5. nwDNn6oWJZdTvYMT

    • Connect the display cable to the connector on the system board.
