Dell Inspiron 14 N4020 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14 N4020 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

2 - 15 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. 51YLWQTnV3yUqhxl

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Remove the two screws that secure the hard-drive assembly to the computer base.

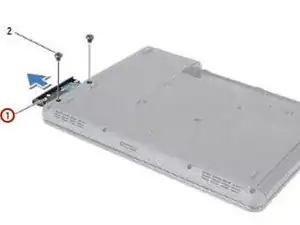

  2. PI5cfcGQ4GhqldxS

    • Slide the hard-drive assembly out of the hard-drive compartment.

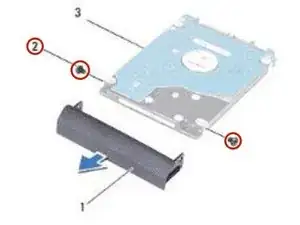

  3. sbdLiPvWq16SUTIN

    • Remove the two screws that secure the hard-drive bezel to the hard drive.

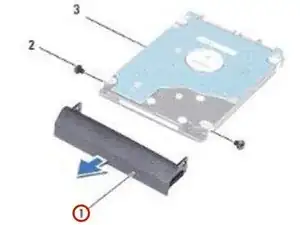

  4. CgRJoEDKNJOFy2t3

    • Pull the hard-drive bezel away from the hard drive.

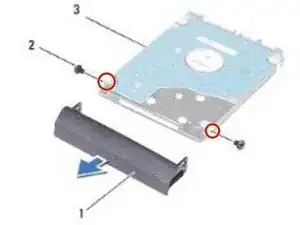

  5. tgjZpBfpEdWrDSL4

    • Align the screw holes on the hard-drive bezel with the screw holes on the NEW hard drive and replace the two screws.

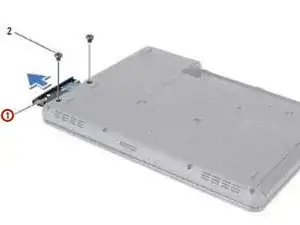

  6. JupGNdXmNDdyLVpA

    • Slide the hard-drive assembly into the hard-drive compartment until it is fully seated.

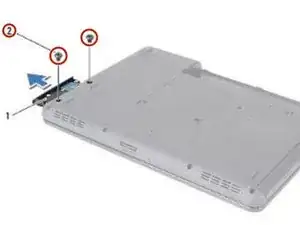

  7. sDNTHmKaY4KcsMPL

    • Replace the two screws that secure the hard-drive assembly to the computer base.
