Dell Inspiron 14 N4030 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

4 - 25 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. Ci2jXRKWGL4upcYH

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Disconnect the display cable from the connector on the system board.

  2. R6L2x2dl4swRODIa

    • Remove the two screws (one on each side) that secure the display assembly to the computer base.

  3. 2YfHFti4RKwxFUKh

    • Lift and remove the display assembly out of the computer base.

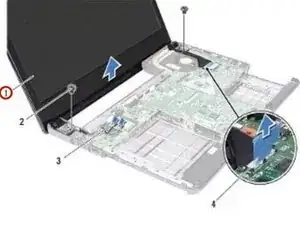

  4. UCeHpSkTaqMaM2Ni

    • Place the NEW display assembly in position and replace the two screws (one on each side) that secure the display assembly to the computer base.

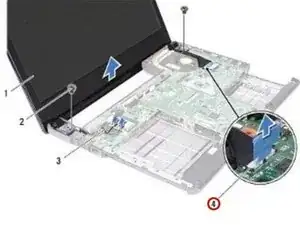

  5. 1LeccKp1NHJlIuh4

    • Connect the display cable to the connector on the system board.
