Dell Inspiron 14 N4030 Memory Module Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14 N4030 Memory Module Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

10 - 50 Sekunden

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Module.

  1. QnaUvJxKQwiTne1J

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

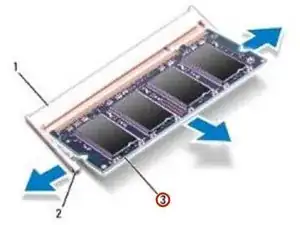

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector until the module pops up.

  2. ZULFXLcrUmiZrn4S
    ZULFXLcrUmiZrn4S
    Qk36CWAcWSK6KHYd

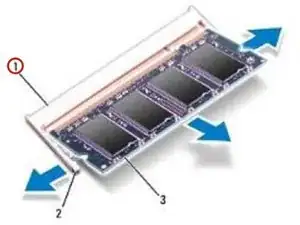

    • Remove the memory module from the memory-module connector.

  3. YVEZqVIxysktMyDT

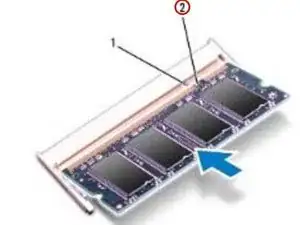

    • Align the notch in the NEW memory module with the tab in the memory- module connector.

  4. LFNxhRtsNiwxUJgP

    • Slide the memory module firmly into the slot at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.
