Dell Inspiron 14-3452 Motherboard Replacement

Geschrieben von: Meg Allison
  • Kommentare: 4
Dell Inspiron 14-3452 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

35 - 45 Minuten

Einleitung

The motherboard functions as a central part of the laptop. Replacing the motherboard with a new one is an involved process, so we will walk you through each step of the process. All the tools needed is a screwdriver and a plastic spudger. Tweezers are optional.

  1. B6NTdPtoiM3cxJKL
    B6NTdPtoiM3cxJKL
    uPxFHyAtv4Z2XOGF

    • Remove the battery by sliding the battery release latch to the left.

    • Pull the entire battery away from the backing.

  2. VgGXHduygk5Z2Vks

    • Ensure that the laptop is completely turned off and the battery is removed.

    • Remove the two Phillips Head 5 mm #0 screws holding the backing in place.

  3. JM4wp55hO2QKyS1r

    • Pull the backing away from the laptop.

  4. dfTblMfQsmC21DWd

    • Locate the blue RAM chip sitting in the RAM bay.

    • Use your fingertips to pry apart the white RAM securing-clips on each side of the memory-module slot until the RAM chip pops up.

  5. wAYlKfWZcWNU13Nn

    • Pull the RAM chip away from the memory-module slot.

    • The RAM chip is now fully detached and ready to be replaced.

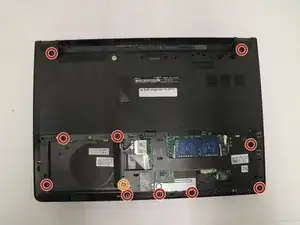

  6. XjFlHYRJdJZvjpSQ

    • Remove the ten Phillips Head 5 mm #0 screws from the computer backing.

    • Remove the one Phillips Head 3 mm #0 screw from the computer backing.

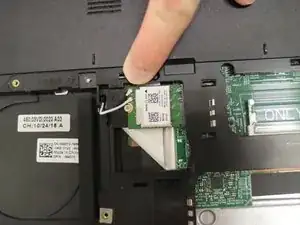

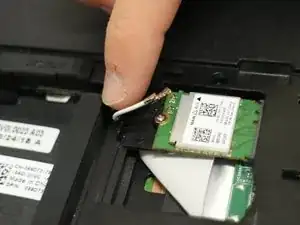

  7. dICQioaKKaxBQBEU
    dICQioaKKaxBQBEU
    IRGu5efj6bQolrJW

    • Remove the white and black antenna cables from the wireless card.

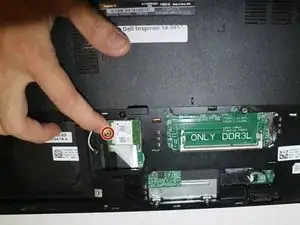

  8. a1mWkOXSRZOQssdi

    • Remove the Phillips Head 3 mm #0 screw that is holding the wireless card in place.

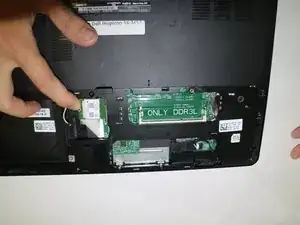

  9. P5D4NNbBV5ujeUjE

    • Slide the wireless card out of the wireless card bay.

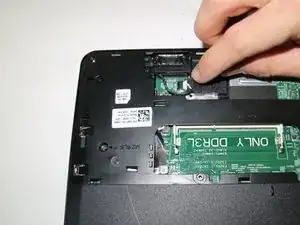

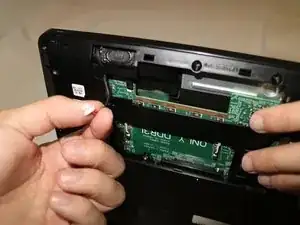

  10. pMhki4CEmMPKWrn4
    pMhki4CEmMPKWrn4
    JJLveOoQbxGYQPgu

    • Using your fingertips remove the speaker cable from the motherboard by pulling the white connector away from the socket.

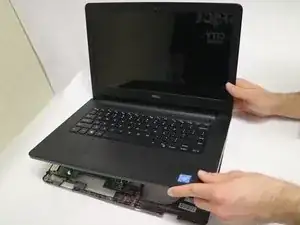

  11. kiIxTqNhpg4xbJjO

    • Pry apart keyboard assembly slowly as keyboard cable will still be attached to the motherboard.

    • Use the blue spudger to pry apart the keyboard assembly from the bottom shell.

    need to open keyboard to unscrew 5 screws before lift up the back

    Khánh Lê -

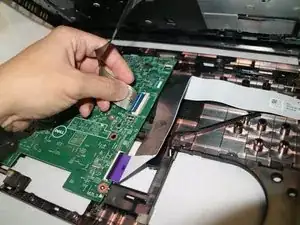

  12. iJVL6PRvfUUZbHAs

    • Disconnect the keyboard cable from the motherboard by lifting the black latch and pulling the cable out of its socket.

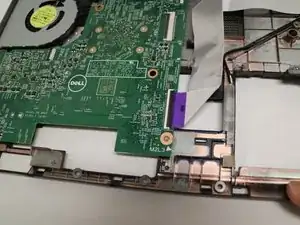

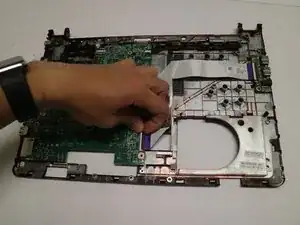

  13. wOTSfuAZDrTEQtIk
    wOTSfuAZDrTEQtIk
    I3O15jpUqUSq2ZYK

    • Remove the I/O board cable from the motherboard by lifting the black latch and pulling the cable out of its socket.

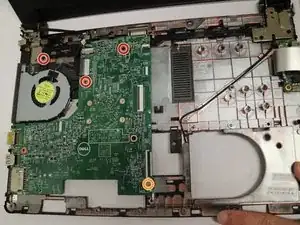

  14. Ct1vQgvKNwD4WQwN

    • Remove the three Phillips Head 5 mm #0 screws.

    • Remove the one Phillips Head 3 mm #0 screw.

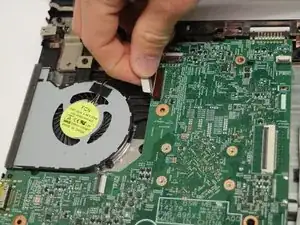

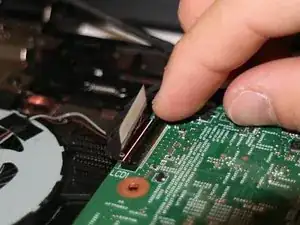

  15. nPYPoeJoe3udEZTA
    nPYPoeJoe3udEZTA
    pb5g2Bn1jJoJfWRJ

    • Disconnect the display cable from the motherboard by pulling tape back and lifting connector latch.

    • Pull the display cable away from the motherboard.

  16. hdKK2gLWSHsdGSZr

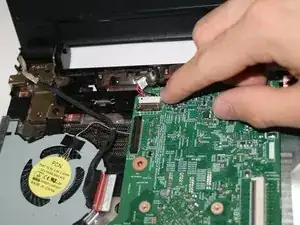

    • Remove the power adapter cable from the motherboard by sliding the cable out of its socket.

  17. INAWEVNXvULvc4uP

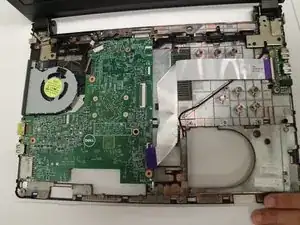

    • Lift the motherboard off of the computer base.

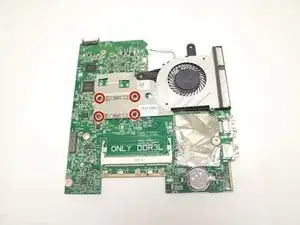

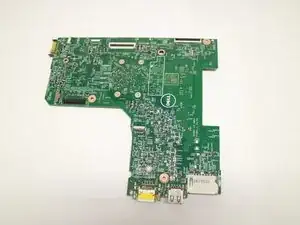

  18. JjnYjwDh2YdVDJoO
    JjnYjwDh2YdVDJoO
    apVUGtoTZvQwFjbV

    • Remove the four Phillips Head 3 mm #0 screws from the fan.

    • Remove the fan cable from the motherboard by sliding the cable out of the socket.

    • Lift the fan off of the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Meg Allison

Mitglied seit: 30/01/18

397 Reputation

3 Kommentare

BEFORE REMOVING TOP CASE: There are screws under the keyboard and one silver screw under the battery that have to be removed. This guide forgot to mention that.

Michael Hill -

Hello.

 Do you know how to expand the HDD memory of this same model 14-3452 ??;  I have a motherboard similar to the one in this guide and it does not have the connector for the hard disk integrated into it.

 I will greatly appreciate your help and response.

Lloyd Lopez -

Can the inspiron 15 3552 motherboard replace this model to have access to harddrive use?

kadianwilliams06 -
