Dell Inspiron 14-7437 Cooling Fan Replacement

Geschrieben von: Katelyn Remy
  • Kommentare: 0
Dell Inspiron 14-7437 Cooling Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

6 Minuten

Einleitung

The Cooling fan is used to remove heat from the laptop so it is not hot to the touch and does not burn the motherboard.

  1. mpGPNSLQOiqbvMRp
    mpGPNSLQOiqbvMRp
    LBUyK4XiwHXrTVNx

    • Power off your Dell Inspiron 14-7437 before disassembling.

    • Remove the eight 4.5 mm screws on the back panel of the device using the Phillips 1 Screwdriver.

    • The two 4.5 mm screws in the center under the rubber mount cannot be removed, but can be loosened.

  2. T21Te6yIVwcTQtkt
    T21Te6yIVwcTQtkt
    Is5ScOJQsJxf4HX6

    • Pry open the back cover using a spudger and slide it along the under the cover.

  3. FBV2qHJNA4SPQXbF
    FBV2qHJNA4SPQXbF
    GrWAdpFHuyTScrox

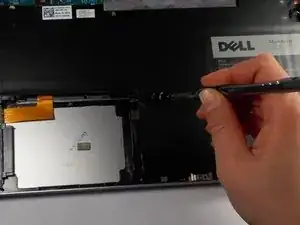

    • Remove the two 2.5 mm screws holding the battery in place using the J000 Phillips Head Screwdriver.

  4. tjHENqEQbZdfDDZt

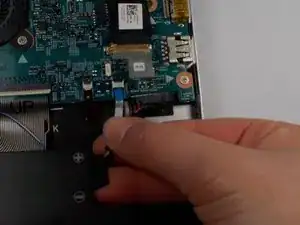

    • Disconnect the ribbon cables from the motherboard.

  5. GhdP1PNfEo5BFaAg

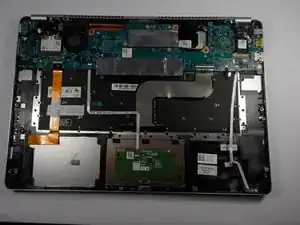

    • Lift up and remove the Lithium-Polymer Battery.

  6. nlKW2hGSJUCS4RAj
    nlKW2hGSJUCS4RAj
    k6okq2DcNtYatWZI

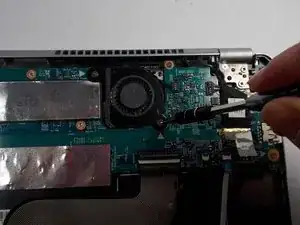

    • Remove the two 2.5 mm screws using a J000 Phillips Head Screwdriver.

  7. DoXlit5Nf4IfXjP2
    DoXlit5Nf4IfXjP2
    bNv15U3MEf2a23bU

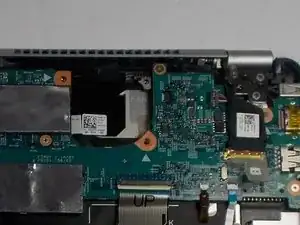

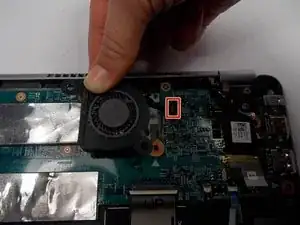

    • Pull up on the wire and remove the Cooling Fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
