Dell Inspiron 14-7437 Thermal Cooling Fan Replacement

Geschrieben von: Katelyn Remy
  • Kommentare: 0
Dell Inspiron 14-7437 Thermal Cooling Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

10 - 15 Minuten

Einleitung

The Thermal-Cooling Assembly is used to keep your laptop from overheating while running. If this breaks and is not replaced you run the risk of frying your motherboard.

  1. mpGPNSLQOiqbvMRp
    mpGPNSLQOiqbvMRp
    LBUyK4XiwHXrTVNx

    • Power off your Dell Inspiron 14-7437 before disassembling.

    • Remove the eight 4.5 mm screws on the back panel of the device using the Phillips 1 Screwdriver.

    • The two 4.5 mm screws in the center under the rubber mount cannot be removed, but can be loosened.

  2. T21Te6yIVwcTQtkt
    T21Te6yIVwcTQtkt
    Is5ScOJQsJxf4HX6

    • Pry open the back cover using a spudger and slide it along the under the cover.

  3. FBV2qHJNA4SPQXbF
    FBV2qHJNA4SPQXbF
    GrWAdpFHuyTScrox

    • Remove the two 2.5 mm screws holding the battery in place using the J000 Phillips Head Screwdriver.

  4. tjHENqEQbZdfDDZt

    • Disconnect the ribbon cables from the motherboard.

  5. GhdP1PNfEo5BFaAg

    • Lift up and remove the Lithium-Polymer Battery.

  6. ONTf22De2JVDhcTS

    • Disconnect wires from Motherboard by gently pulling up.

  7. qdXLNJULAbZIJaKY
    qdXLNJULAbZIJaKY
    lq1t4jRCqNNa1jjp
    QEEhoWKTOXbyU1JR

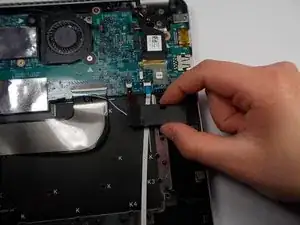

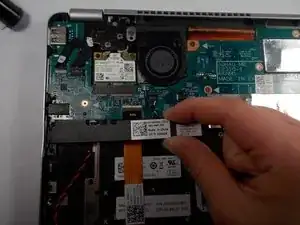

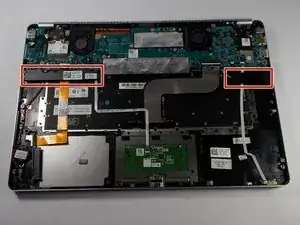

    • Remove the speakers from the case.

  8. bNMvlOZepDe5IyCj

    • Lift the coin cell battery wire, and carefully remove from motherboard.

    • There are little hooks that the wire is hooked under.

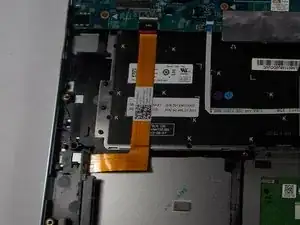

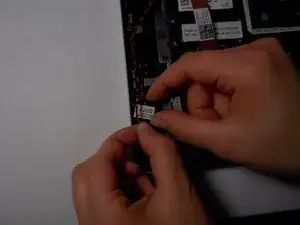

  9. rrRwEYt2RL5vvPQ4
    rrRwEYt2RL5vvPQ4
    KarZBeyKsFAAGAUk

    • Remove the Coin-Cell Battery from the case.

    • There is a small amount of adhesive on the bottom of the coin cell battery.

  10. nlKW2hGSJUCS4RAj
    nlKW2hGSJUCS4RAj
    k6okq2DcNtYatWZI

    • Remove the two 2.5 mm screws using a J000 Phillips Head Screwdriver.

  11. DoXlit5Nf4IfXjP2
    DoXlit5Nf4IfXjP2
    bNv15U3MEf2a23bU

    • Pull up on the wire and remove the Cooling Fan.

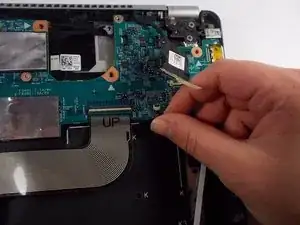

  12. j5RKcQUTemsjr2w5
    j5RKcQUTemsjr2w5
    MXvASVBDcTCbLIRB
    pZSbo3V6IJkTElnC

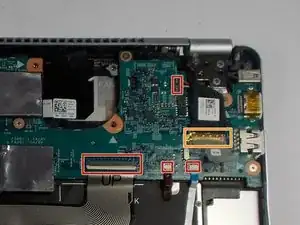

    • Disconnect cables connected to the motherboard by lifting the flaps up and pulling out.

    • This is a ZIF connector and needs to have the side flaps flipped up before removal.

    • The ZIF connector has small clips that need to be pulled up before being pulled out.

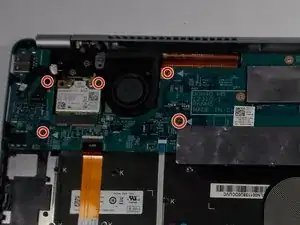

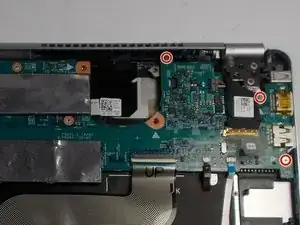

  13. DZPDBxSZgprlhIaA
    DZPDBxSZgprlhIaA
    XlMYAXUiJBcvUquj
    FfXRDjRSyfhHI4LJ

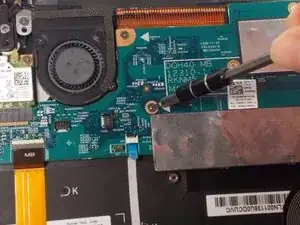

    • Remove the eight 2.5 mm screws using a J000 Phillips Head Screwdriver.

  14. jPwGIywNVb2HgsJj
    jPwGIywNVb2HgsJj
    ytT1MmAZ5oEpCONw

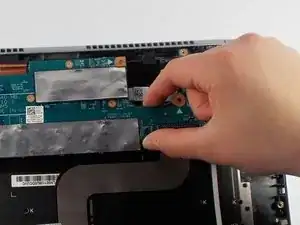

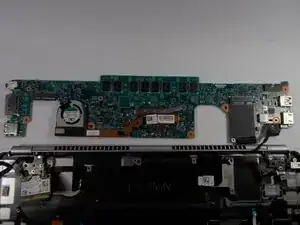

    • Flip the motherboard.

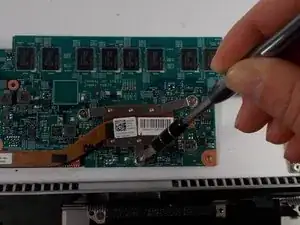

  15. eR2FSrxAGei6ub2A
    eR2FSrxAGei6ub2A
    pOupr6ukLb6doP3W

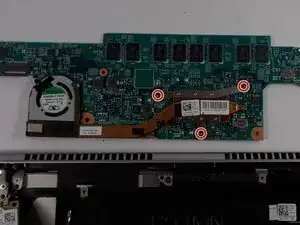

    • Loosen the three 2.5 mm screws using the J000 Phillips Head Screwdriver.

    • These three 2.5 mm screws cannot be removed from the Thermal Cooling assembly.

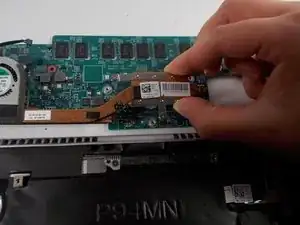

  16. AvJr54FZRj2XkMUh

    • Remove the Thermal-Cooling Assembly from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
