Dell Inspiron 1410 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1410 Memory Modules Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

10 - 45 Sekunden

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. pGytIutjbOL3oFjU

    • CAUTION: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

    • NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

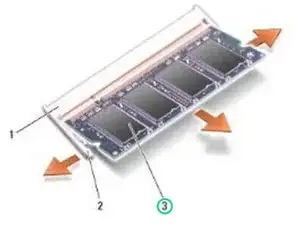

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up.

  2. VcGEH1KbWRLPlg12

    • Remove the module from the connector.

  3. E6HnRr6oHQJVHDme

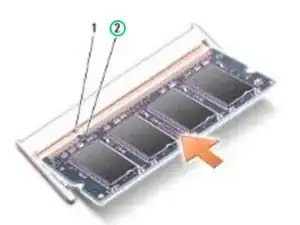

    • Align the notch in the module edge connector with the tab in the connector slot.

  4. 5N4aXKcZGRkxc56l

    • Slide the NEW module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place. If the module does not click into place, remove the module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.
