Dell Inspiron 1420 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide is to replace a broken or faulty keyboard on the Insprion 1420 laptop.

  1. VFSxtb4AqXeKJGh5
    VFSxtb4AqXeKJGh5
    RSlfvI6dG1OVCJHb
    RkceN4rYgZUUc2mA

    • Slide the two tabs to release the battery.

    • Pull the battery out.

  2. 1HQwxKYXlZCTuosx

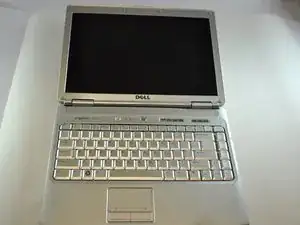

    • Open the lid as far back as possible.

  3. 6ijWarMibtusLdyI
    6ijWarMibtusLdyI
    M2A2VyOghmZBWUNv

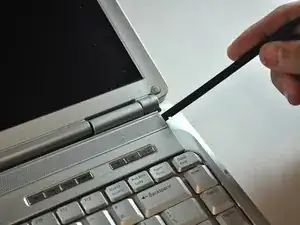

    • Using a spudger, pry off the top cover plate, thus exposing the screws for the keyboard.

  4. lFCn3JsrcrwFBVZf
    lFCn3JsrcrwFBVZf
    ZwZMBSjZA6Armsrx
    iAocDB1K1RMKOEDs

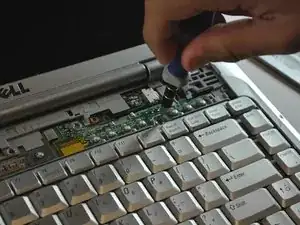

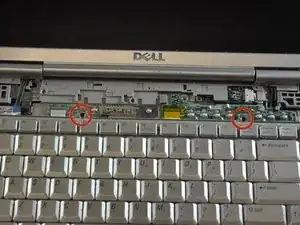

    • Using a Phillips #00 screwdriver, unscrew the two 3mm screws holding the keyboard down.

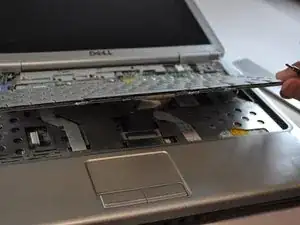

    • When removing the keyboard, be cautious not to damage the connecting ribbon underneath.

  5. qMLqOfNKrPajTV4G
    qMLqOfNKrPajTV4G
    ILlVjW33ZCyVUubK
    wWHAPEEPKGsf2W6v

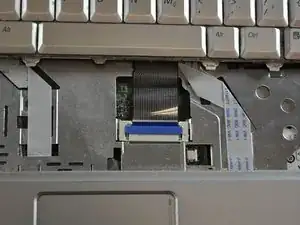

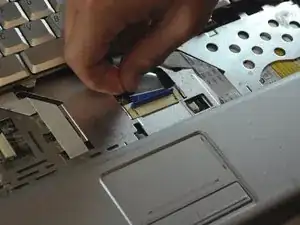

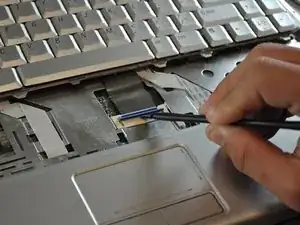

    • Using a spudger, carefully lift the blue tab, releasing the ribbon connector and freeing the keyboard to be removed.

    Gracias por tu ayuda, me fue de mucha utilidad y funciono a la perfección

    Juan Jose Melendez -

Abschluss

To reassemble your device, follow these instructions in reverse order.
