Dell Inspiron 1420 Memory Module Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1420 Memory Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 20 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Module.

  1. 4oUT3XUWTvdcobAK

    • Follow the procedures in Before You Begin.

    • Turn the computer over.

    • Loosen the captive screws from the memory module cover.

  2. KXNhy2fEPwlYphKD

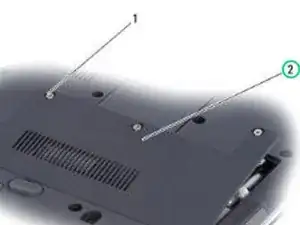

    • Lift the memory module cover and set it aside.

    • NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

  3. jwxjYmBnKaPtAUrJ

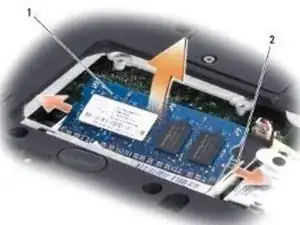

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up.

  4. eWywUPnLsFWFsXFa

    • Remove the module from the connector.

  5. yT2Ap65vllCdbprt

    • Align the notch in the module edge connector with the tab in the connector slot.

  6. ZYCZwNS1ZitWAOuT

    • Slide the module firmly into the slot at a 30-degree angle, and rotate the module down until it clicks into place. If you do not feel the click, remove the module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot. No error message indicates this failure.

  7. JF6li6wVpOHYW5Vj
    JF6li6wVpOHYW5Vj
    HWPRycYE2so2WUxv

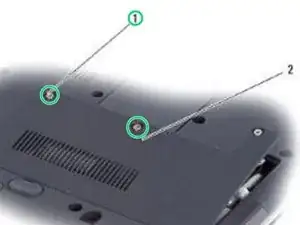

    • Replace the memory module cover and tighten the three captive screws.
