Dell Inspiron 1428 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1428 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

4 - 10 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. 4SDnKfEiu4AYvkbW

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in "Before You Begin".

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Make note of the Mini-Card antenna cables routing and remove the cables from the routing guides.

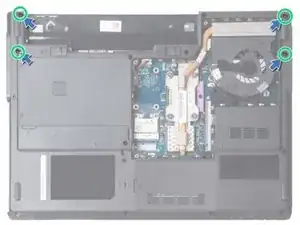

  2. TdWHSHul5rLcyMaE

    • Remove the four screws that secure the display assembly to the computer base.

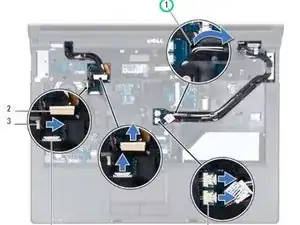

  3. CbLjZjoBuU6Jr1pV

    • Make note of the Mini-Card antenna cable routing and carefully dislodge the antenna cables from the cable routing slot on the computer. Pull the cables away, so that they are clear of the palm rest.

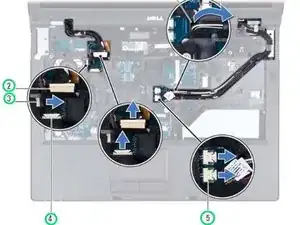

  4. HmOG1cGZ2pEFjsym

    • Disconnect the display cable, inverter board cable, camera cable, and microphone cables from the respective system board connectors.

  5. eEgy6sdW6ItPu3rO

    • Remove the cables from their routing guides.

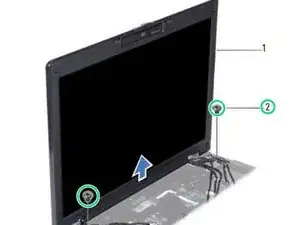

  6. JTSSwIr3LJgHaYJb

    • Remove the two screws that secure the display assembly to the computer base.

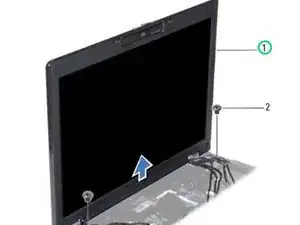

  7. FSLfytKTaUYguofg

    • Lift the display assembly off the computer.

  8. GZRf26gIgqQZRdJK

    • Place the NEW display assembly in position and replace the two screws that secure the display assembly to the computer base.

  9. vOGTpfvwNia5FXr1

    • Route all the cables through the routing guides.

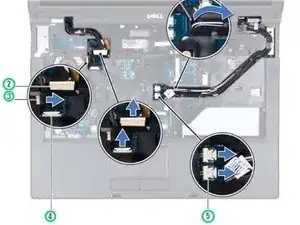

  10. llAgFNYcZmCUyCIB

    • Connect the display cable, inverter board cable, and the camera cable to their respective system board connectors.
